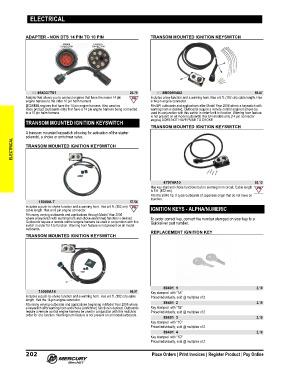

Page 215 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

ADAPTER - NON DTS 14 PIN TO 10 PIN TRANSOM MOUNTED IGNITION KEYSWITCH

84-866337T01 25.70 87-8M0090402 69.87
Adapter that allows you to connect engines that have the newer 14 pin Includes a key function and a warning horn. Has a 6 ft. (182 cm) cable length. Has
engine harness to the older 10 pin helm harness a 14 pin engine connector.
MCM/MIE engines that have the 14 pin engine harness. Also used on Fits EFI outboards and applications after Model Year 2006 where a keyswitch with
Race product (outboards only) that have a 14 pin engine harness being connected warning horn is desired. Outboards require a remote control engine harness be
to a 10 pin helm harness. used in conjunction with this switch in order for it to function. Warning horn feature
is not present on all model outboards. For EFI models only (14 pin connector
TRANSOM MOUNTED IGNITION KEYSWITCH engine) DOES NOT HAVE PUSH TO CHOKE
TRANSOM MOUNTED IGNITION KEYSWITCH
A transom mounted keyswitch allowing for activation of the starter
solenoid, a choke or enrichner valve.
ELECTRICAL TRANSOM MOUNTED IGNITION KEYSWITCH

47974A10 93.13
Has key start and choke functions but no warning horn circuit. Cable length
is 5 ft. (152 cm).
Fits the 30/40 hp. 2 cycle outboards of Japanese origin that do not have oil
injection.
15000A 7 57.54
Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm)
cable length. Has an 8 pin engine connector. IGNITION KEYS - ALPHA/NUMERIC
Fits many varying outboards and applications through Model Year 2005
where a keyswitch with warning horn and choke (enrichner) function is desired. To order correct key, convert the number stamped on your key to a
Outboards require a remote control engine harness be used in conjunction with this Quicksilver part number.
switch in order for it to function. Warning horn feature is not present on all model
outboards.
REPLACEMENT IGNITION KEY
TRANSOM MOUNTED IGNITION KEYSWITCH

89491 1 2.19
15000A14 66.91 Key stamped with "1A"
Includes a push‑to‑choke function and a warning horn. Has a 6 ft. (182 cm) cable Priced individually, sold @ multiples of 2
length. Has the 14 pin engine connector.
Fits many varying outboards and applications beginning in Model Year 2006 where 89491 2 2.19
a keyswitch with warning horn and choke (enrichner) function is desired. Outboards Key stamped with "1B"
require a remote control engine harness be used in conjunction with this switch in Priced individually, sold @ multiples of 2
order for it to function. Warning horn feature is not present on all model outboards.
89491 3 2.19
Key stamped with "1C"
Priced individually, sold @ multiples of 2
89491 4 2.19
Key stamped with "1D"
Priced individually, sold @ multiples of 2
