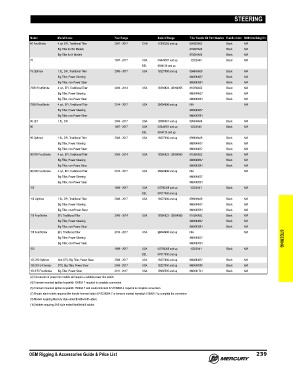

Page 252 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

Model Model Notes Year Range Serial # Range Tiller Handle Kit Part Number Handle Color Shift Attaching Kit
60 FourStroke 4 cyl. EFI, Traditional Tiller 2007 - 2017 CHN 1C050252 and up 880093A03 Black N/A
Big Tiller for RC Models 879291A04 Black N/A
Big Tiller for H Models 879291A05 Black N/A
75 1997 - 2017 USA 0G449551 and up 12022A40 Black N/A
BEL 9934128 and up
75 Optimax 1.5L, DFI, Traditional Tiller 2006 - 2017 USA 1B227000 and up 896648A09 Black N/A
Big Tiller, Power Steering 8M0094637 Black N/A
Big Tiller, non-Power Steer 8M0093581 Black N/A
75/80 FourStroke 4 cyl., EFI, Traditional Tiller 2006 - 2014 USA 1B366823 - 2B094995 816366A52 Black N/A
Big Tiller, Power Steering 8M0094637 Black N/A
Big Tiller, non-Power Steer 8M0093581 Black N/A
75/80 FourStroke 4 cyl., EFI, Traditional Tiller 2014 - 2017 USA 2B094996 and up N/A N/A
Big Tiller, Power Steering 8M0094637
Big Tiller, non-Power Steer 8M0093581
80 JET 1.5L, DFI 2006 - 2017 USA 1B586067 and up 896648A09 Black N/A
90 1997 - 2017 USA 0G449551 and up 12022A40 Black N/A
BEL 9934128 and up
90 Optimax 1.5L, DFI, Traditional Tiller 2006 - 2017 USA 1B227000 and up 896648A09 Black N/A
Big Tiller, Power Steering 8M0094637 Black N/A
Big Tiller, non-Power Steer 8M0094637 Black N/A
90/100 FourStroke 4 cyl., EFI, Traditional Tiller 2006 - 2014 USA 1B366823 - 2B094995 816366A52 Black N/A
Big Tiller, Power Steering 8M0094637 Black N/A
Big Tiller, non-Power Steer 8M0093581 Black N/A
90/100 FourStroke 4 cyl., EFI, Traditional Tiller 2014 - 2017 USA 2B094996 and up N/A N/A
Big Tiller, Power Steering 8M0094637
Big Tiller, non-Power Steer 8M0093581
115 1999 - 2017 USA 0G760300 and up 12022A41 Black N/A
BEL 0P017000 and up
115 Optimax 1.5L, DFI, Traditional Tiller 2006 - 2017 USA 1B227000 and up 896648A09 Black N/A
Big Tiller, Power Steering 8M0094637 Black N/A
Big Tiller, non0Power Steer 8M0093581 Black N/A
115 FourStroke EFI, Traditional Tiller 2006 - 2014 USA 1B366823 - 2B094995 816366A52 Black N/A
Big Tiller, Power Steering 8M0094637 Black N/A
Big Tiller, non-Power Steer 8M0093581 Black N/A
115 FourStroke EFI, Traditional Tiller 2014 - 2017 USA 2B094996 and up N/A N/A
Big Tiller, Power Steering 8M0094637 STEERING
Big Tiller, non-Power Steer 8M0093581
125 1999 - 2017 USA 0G760300 and up 12022A41 Black N/A
BEL 0P017000 and up
135-250 Optimax Non-DTS, Big Tiller, Power Steer 2006 - 2017 USA 1B227000 and up 8M0094637 Black N/A
135-200 L4 Verado DTS, Big Tiller, Power Steer 2006 - 2017 USA 1B227000 and up 8M0098585 Black N/A
150 EFI FourStroke Big Tiller, Power Steer 2011 - 2017 USA 1B905505 and up 8M0061721 Black N/A
(2) Conversion of power trim models will require a suitable power trim switch.
(4) Transom mounted ignition keyswitch 15000A 7 required to complete conversion.
(5) Transom mounted ignition keyswitch 15000A 7 and neutral interlock 87-813960A 4 required to complete conversion.
(7) Electric start models requires tiller handle harness button 87-823609A 7 or transom monted keyswitch 15000A 7 to complete the conversion.
(9) Models requiring Mercury style ended throttle/shift cables.
(10) Models requiring SAE style ended throttle/shift cables.

OEM Rigging & Accessories Guide & Price List 239
