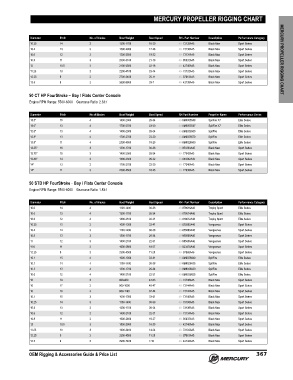

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.25 14 3 1300-1700 16-30 48- 73138A45 Black Max Sport Series
10.4 13 3 1500-2000 17-26 48- 73136A45 Black Max Sport Series
10.6 12 3 1700-2500 19-22 48- 73134A45 Black Max Sport Series
10.8 11 3 2000-3100 21-18 48- 85632A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART
12 10.5 3 2100-3500 22-16 48- 42740A45 Black Max Sport Series
11.25 10 3 2200-4100 23-14 48- 73132A45 Black Max Sport Series
12.25 9 3 2700-5400 25-11 48- 87818A45 Black Max Sport Series
12.5 8 3 3500-8900 29-7 48- 42738A45 Black Max Sport Series

50 CT HP FourStroke – Bay / Flats Center Console
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13.5" 15 4 1400-2000 28-34 48-8M0055548 SpitFire X7 Elite Series
14.0" 13 4 1700-2700 23-30 48-8M0055547 SpitFire X7 Elite Series
12.8" 15 4 1400-2000 28-34 48-8M8026580 SpitFire Elite Series
13.8" 13 4 1700-2700 23-30 48-8M8026570 SpitFire Elite Series
13.8" 11 4 2300-4500 18-25 48-8M8026560 SpitFire Elite Series
13.25" 16 3 1300-1700 30-36 48-854360A45 Black Max Sport Series
13.75" 15 3 1400-2000 28-34 48- 77342A45 Black Max Sport Series
13.88" 14 3 1500-2300 26-32 48-854352A45 Black Max Sport Series
14" 13 3 1700-2700 23-30 48- 77340A45 Black Max Sport Series
14" 11 3 2300-4500 18-25 48- 77338A45 Black Max Sport Series

50 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.83:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
10.6 14 4 1100-1400 30-38 48-878616A46 Trophy Sport Elite Series
10.6 13 4 1300-1700 26-34 48-878614A46 Trophy Sport Elite Series
10.6 12 4 1400-2100 22-31 48-878612A46 Trophy Sport Elite Series
10.25 15 3 1000-1300 33-41 48-855862A46 Vengeance Sport Series
10.4 14 3 1100-1400 30-38 48-855860A46 Vengeance Sport Series
10.5 13 3 1300-1700 26-34 48-855858A46 Vengeance Sport Series
11 12 3 1400-2100 22-31 48-855856A46 Vengeance Sport Series
11.6 11 3 1600-2600 18-27 48-823478A46 Vengeance Sport Series
12.25 9 3 2300-4500 11-20 48- 97868A46 Vengeance Sport Series
10.1 15 4 1000-1300 33-41 48-8M8026640 SpitFire Elite Series
10.1 14 4 1100-1400 30-38 48-8M8026635 SpitFire Elite Series
10.3 13 4 1300-1700 26-34 48-8M8026630 SpitFire Elite Series
10.6 12 4 1400-2100 22-31 48-8M8026625 SpitFire Elite Series
10 19 3 800-900 47-53 48- 73146A45 Black Max Sport Series
10 17 3 900-1000 40-47 48- 73144A45 Black Max Sport Series
10 16 3 900-1100 37-44 48- 73142A45 Black Max Sport Series
10.1 15 3 1000-1300 33-41 48- 73140A45 Black Max Sport Series
10.25 14 3 1100-1400 30-38 48- 73138A45 Black Max Sport Series
10.4 13 3 1300-1700 26-34 48- 73136A45 Black Max Sport Series
10.6 12 3 1400-2100 22-31 48- 73134A45 Black Max Sport Series
10.8 11 3 1600-2600 18-27 48- 85632A45 Black Max Sport Series
12 10.5 3 1800-2900 16-25 48- 42740A45 Black Max Sport Series
11.25 10 3 1900-3400 14-24 48- 73132A45 Black Max Sport Series
12.25 9 3 2300-4500 11-20 48- 87818A45 Black Max Sport Series
12.5 8 3 2900-7400 7-16 48- 42738A45 Black Max Sport Series
