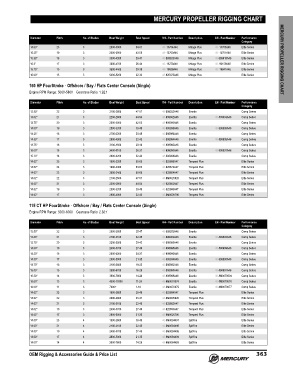

Page 376 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
14.63” 23 3 2600-3000 54-61 48- 13704A46 Mirage Plus 48- 13705A46 Elite Series
15.25” 19 3 3300-3900 43-50 48- 13700A46 Mirage Plus 48- 13701A46 Elite Series
15.38” 18 3 3500-4300 39-47 48-889620A46 Mirage Plus 48-889619A46 Elite Series MERCURY PROPELLER RIGGING CHART
15.5” 17 3 3800-4700 36-44 48- 18278A46 Mirage Plus 48- 90159A46 Elite Series
15.75” 15 3 3600-4400 29-38 48- 19838A46 Mirage Plus 48- 19841A46 Elite Series
16.00” 13 3 5400-8200 22-32 48-826072A46 Mirage Plus Elite Series

150 HP FourStroke ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.50” 22 3 2100-2600 47-57 48-899202A46 Enertia Comp Series
13.62” 21 3 2200-2800 44-54 48-899002A46 Enertia 48-899003A46 Comp Series
13.75” 20 3 2300-3000 42-52 48-899000A46 Enertia Comp Series
14.00” 19 3 2500-3200 39-49 48-898998A46 Enertia 48-898999A46 Comp Series
14.25” 18 3 2700-3200 35-46 48-898996A46 Enertia Comp Series
14.50” 17 3 2900-4000 32-43 48-898994A46 Enertia 48-898995A46 Comp Series
14.75” 16 3 3100-4500 29-40 48-898992A46 Enertia Comp Series
15.00” 15 3 3400-5100 26-37 48-898990A46 Enertia 48-898991A46 Comp Series
15.13” 14 3 3800-6200 22-34 48-898988A46 Enertia Comp Series
14.62” 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.62” 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.62” 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series

115 CT HP FourStroke ‑ Offshore / Bay / Flats Center Console (Single)
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description LH - Part Number Performance
Category
13.50” 22 3 2000-2800 35-47 48-899202A46 Enertia Comp Series
13.80” 21 3 2100-3100 32-45 48-899002A46 Enertia 48-899003A46 Comp Series
13.75” 20 3 2300-3500 29-42 48-899000A46 Enertia Comp Series
14.00” 19 3 2400-3700 27-40 48-898998A46 Enertia 48-898999A46 Comp Series
14.20” 18 3 2600-4300 24-37 48-898996A46 Enertia Comp Series
14.50” 17 3 2800-5000 21-35 48-898994A46 Enertia 48-898995A46 Comp Series
14.70” 16 3 3100-5600 19-32 48-898992A46 Enertia Comp Series
15.00” 15 3 3500-6700 16-29 48-898990A46 Enertia 48-898991A46 Comp Series
15.30” 14 3 3900-7800 14-26 48-898988A46 Enertia 48-8M0079504 Comp Series
15.60” 13 3 4300-10300 11-24 48-8M0070074 Enertia 48-8M0070076 Comp Series
16.00” 11 3 7000+ 1-18 48-8M0070079 Enertia 48-8M0070077 Comp Series
14.62” 23 3 1900-2600 38-49 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 2000-2800 35-47 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 2100-3100 32-45 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 2400-3700 27-40 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 2800-5000 21-35 48-8M8026790 Tempest Plus Elite Series
14.00” 23 4 1900-2600 38-49 48-8M0084497 SpitFire Elite Series
14.00” 21 4 2100-3100 32-45 48-8M0084496 SpitFire Elite Series
14.00” 19 4 2400-3700 27-40 48-8M0084495 SpitFire Elite Series
14.00” 17 4 2800-5000 21-35 48-8M0084494 SpitFire Elite Series
14.00” 14 4 3900-7800 14-26 48-8M0084493 SpitFire Elite Series

OEM Rigging & Accessories Guide & Price List 363
