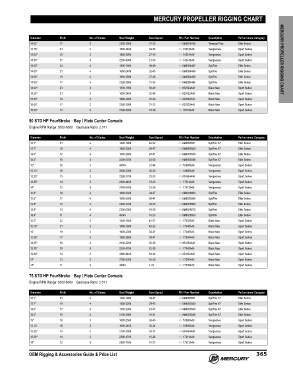

Page 378 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 17 3 2200-3900 21-35 48-8M8026790 Tempest Plus Elite Series
13.75” 21 3 1600-2400 32-45 48- 16318A46 Vengeance Sport Series
14.00” 19 3 1900-2900 27-40 48- 16316A46 Vengeance Sport Series
14.50” 17 3 2200-3900 21-35 48- 16314A46 Vengeance Sport Series MERCURY PROPELLER RIGGING CHART
14.00” 23 4 1500-1900 38-49 48-8M0084497 SpitFire Elite Series
14.00” 21 4 1600-2400 32-45 48-8M0084496 SpitFire Elite Series
14.00” 19 4 1900-2900 27-40 48-8M0084495 SpitFire Elite Series
14.00” 17 4 2200-3900 21-35 48-8M0084494 SpitFire Elite Series
14.00” 23 3 1500-1900 38-49 48-832834A45 Black Max Sport Series
14.25” 21 3 1600-2400 32-45 48-832832A45 Black Max Sport Series
14.50” 19 3 1900-2900 27-40 48-832830A45 Black Max Sport Series
15.00” 17 3 2200-3900 21-35 48-832828A45 Black Max Sport Series
15.25” 15 3 2700-5300 16-29 48- 78116A45 Black Max Sport Series

90 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7” 21 4 1400-1900 40-52 48-8M0055551 SpitFire X7 Elite Series
12.7” 19 4 1600-2300 34-47 48-8M0055550 SpitFire X7 Elite Series
13.0” 17 4 1800-2800 28-41 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2200-3700 22-35 48-8M0055548 SpitFire X7 Elite Series
13” 18 3 4000+ 31-44 48- 16988A46 Vengeance Sport Series
13.13” 16 3 2000-3200 25-38 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2200-3700 22-35 48-854354A46 Vengeance Sport Series
13.38” 14 3 2400-4400 19-32 48- 17314A46 Vengeance Sport Series
14” 12 3 2700-5300 13-26 48- 17312A46 Vengeance Sport Series
12.8” 19 4 1600-2300 34-47 48-8M8026600 SpitFire Elite Series
12.8” 17 4 1800-2800 28-41 48-8M8026590 SpitFire Elite Series
12.8” 15 4 2200-3700 22-35 48-8M8026580 SpitFire Elite Series
13.8” 13 4 2700-5300 16-29 48-8M8026570 SpitFire Elite Series
13.8” 11 4 4000+ 10-23 48-8M8026560 SpitFire Elite Series
12.5” 23 3 1300-1600 45-57 48- 77350A45 Black Max Sport Series
12.75” 21 3 1400-1900 40-52 48- 77348A45 Black Max Sport Series
13” 19 3 1600-2300 34-47 48- 77346A45 Black Max Sport Series
13.25” 17 3 1800-2800 28-41 48- 77344A45 Black Max Sport Series
13.25” 16 3 2000-3200 25-38 48-854360A45 Black Max Sport Series
13.75” 15 3 2200-3700 22-35 48- 77342A45 Black Max Sport Series
13.88” 14 3 2400-4400 19-32 48-854352A45 Black Max Sport Series
14” 13 3 2700-5300 16-29 48- 77340A45 Black Max Sport Series
14” 11 3 4000+ 1-22 48- 77338A45 Black Max Sport Series
75 STD HP FourStroke ‑ Bay / Flats Center Console
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7” 21 4 1300-1900 34-47 48-8M0055551 SpitFire X7 Elite Series
12.7” 19 4 1500-2300 29-42 48-8M0055550 SpitFire X7 Elite Series
13.0” 17 4 1700-2900 23-37 48-8M0055549 SpitFire X7 Elite Series
13.5" 15 4 2100-3900 18-31 48-8M0055548 SpitFire X7 Elite Series
13” 18 3 1600-2500 26-40 48- 16988A46 Vengeance Sport Series
13.13” 16 3 1900-3400 20-34 48- 16986A46 Vengeance Sport Series
13.25” 15 3 2100-3900 18-31 48-854354A46 Vengeance Sport Series
13.38” 14 3 2300-4700 15-28 48- 17314A46 Vengeance Sport Series
14” 12 3 2900-7500 10-23 48- 17312A46 Vengeance Sport Series

OEM Rigging & Accessories Guide & Price List 365
