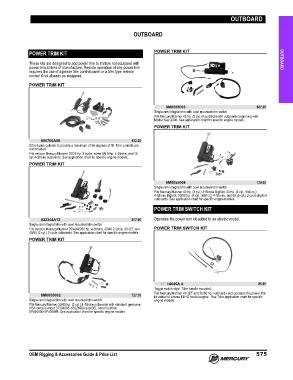

Page 588 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

OUTBOARD

POWER TRIM KIT POWER TRIM KIT

These kits are designed to add power trim to motors not equipped with OUTBOARD
power trim at time of manufacture. Remote operation of any power trim
requires the use of a power trim control panel or a trim type remote
control if not already so equipped.

POWER TRIM KIT

8M0055003 687.25
Single ram integral trim with cowl mounted trim switch.
Fits Mercury/Mariner 40 hp. (3 cyl.) FourStroke EFI outboards beginning with
Model Year 2006. See application chart for specific engine models.
POWER TRIM KIT

850700A08 632.25
Kit includes cylinder to provide a maximum of 56 degrees of tilt. Trim controls are
not included.
Fits various Mercury/Mariner 20/25 hp. 2 cycle, some 8/9.9 hp. 4‑Stroke, and 15
hp. 4‑Stroke outboards. See application chart for specific engine models.
POWER TRIM KIT

8M0055008 739.00
Single ram integral trim with cowl mounted trim switch.
Fits Mercury/Mariner 40 hp. (3 cyl.) 4‑Stroke Bigfoot, 40 hp. (4 cyl., 996 cc.)
4‑Stroke Bigfoot, 50/60 hp. (4 cyl., 996 cc.) 4‑Stroke, and 60 (3 cyl.) 2 cycle Bigfoot
outboards. See application chart for specific engine models.

POWER TRIM SWITCH KIT

822344A13 817.90 Operates the power trim kit added to an electric model.
Single ram integral trim with cowl mounted trim switch.
Fits various Mercury/Mariner 25/40/45/50 hp. 4‑Stroke, 30/40 2 cycle, 30 JET and POWER TRIM SWITCH KIT
40/50 (3 cyl.) 2 cycle outboards. See application chart for specific engine models.
POWER TRIM KIT

87- 14645A 4 85.65
Toggle switch style. Tiller handle mounted.
Fits Mercury/Mariner 40 JET and 50/60 hp. outboards and operates the power trim
8M0055002 727.35 kit added to a base ELHO model engine. See Tiller application chart for specific
Single ram integral trim with cowl mounted trim switch. engine models.
Fits Mercury/Mariner 30/40 hp. (3 cyl.) 4‑Stroke outboards with standard gearcase,
USA serial number 0T294065‑1B226999 and BEL serial number
0P094500‑0P400999. See application chart for specific engine models.
