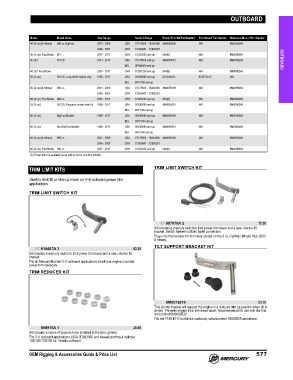

Page 590 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

Model Model Notes Year Range Serial # Range Power Trim Kit Part Number Port Mount Trim Sender Starboard Mount Trim Sender
40 (4 cyl.)(4-Stroke) 996 cc. BigFoot 2001 - 2006 USA 0T178500 - 1B344306 8M0055008 N/A 8M0098264
2006 - 2007 CHN 1C000001 - 1C050251
40 (4 cyl.) FourStroke EFI 2007 - 2017 CHN 1C050252 and up N/A(6) N/A 8M0098264
40 JET 59 CID 2001 - 2017 USA 0T178500 and up 8M0055001 N/A 8M0098264 OUTBOARD
BEL 0P094500 and up
40 JET FourStroke 2007 - 2017 CHN 1C051324 and up N/A(6) N/A 8M0098264
50 (3 cyl.) 59 CID, Long shaft models only. 1998 - 2017 USA 0G590000 and up 822344A13 822573A12 N/A
BEL 9973100 and up
50 (4 cyl.)(4-Stroke) 996 cc. 2001 - 2006 USA 0T178500 - 1B344306 8M0055008 N/A 8M0098264
2006 - 2007 CHN 1C000001 - 1C050251
50 (4 cyl.) FourStroke 996 cc. 2007 - 2017 CHN 1C050252 and up N/A(6) N/A 8M0098264
55 (3 cyl.) 59 CID, Requires electric start kit. 1998 - 2017 USA 0G590000 and up 8M0055001 N/A 8M0098264
BEL 9973100 and up
60 (3 cyl.) BigFoot Models 1998 - 2017 USA 0G590000 and up 8M0055008 N/A 8M0098264
BEL 9973100 and up
60 (3 cyl.) Non-BigFoot Models 1998 - 2017 USA 0G590000 and up 8M0055001 N/A 8M0098264
BEL 9973100 and up
60 (4 cyl.)(4-Stroke) 996 cc. 2001 - 2006 USA 0T178500 - 1B344306 8M0055008 N/A 8M0098264
2006 - 2007 CHN 1C000001 - 1C050251
60 (4 cyl.) FourStroke 996 cc. 2007 - 2017 CHN 1C050252 and up N/A(6) N/A 8M0098264
(6) Power trim not available as an add-on kit for non-trim models.

TRIM LIMIT KITS TRIM LIMIT SWITCH KIT

Used to limit tilt or trim‑up travel on V‑6 outboard power trim
applications.

TRIM LIMIT SWITCH KIT

87-887979A 2 75.30
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket. Switch harness utilizes bullet connectors.
Plugs into the harness for trim relay control on the 3.0L OptiMax (Model Year 2003
& newer).
TILT SUPPORT BRACKET KIT
87-814407A 3 62.35
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket.
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted
power trim solenoids.
TRIM REDUCER KIT

8M0072610 53.75
This shorter bracket will support the engine in a reduced trim up position when tilt is
limited. Prevents engine from trim bleed down. Recommended for use with the trim
limit control 8M0059532.
Fits the F150 EFI FourStroke outboard, serial number 1B905505 and above.

858915A 1 25.05
Kit includes a series of spacers to be installed in the trim cylinder.
Fits V‑6 outboard applications (USA 0D082000 and Newer) and the 4 cylinder
135/150/175/200 hp. Verado outboard.

OEM Rigging & Accessories Guide & Price List 577
