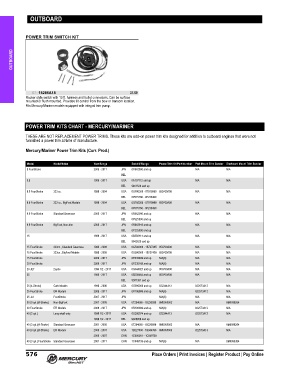

Page 589 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

POWER TRIM SWITCH KIT

OUTBOARD

87- 18286A18 37.60
Rocker style switch with 10 ft. harness and bullet connectors. Can be surface
mounted or flush mounted. Provides tilt control from the bow or transom location.
Fits Mercury/Mariner models equipped with integral trim pump.

POWER TRIM KITS CHART - MERCURY/MARINER

THESE ARE NOT REPLACEMENT POWER TRIMS. These kits are add‑on power trim kits designed for addition to outboard engines that were not
furnished a power trim at time of manufacture.
Mercury/Mariner Power Trim Kits (Curr. Prod.)

Model Model Notes Year Range Serial # Range Power Trim Kit Part Number Port Mount Trim Sender Starboard Mount Trim Sender
8 FourStroke 2005 - 2017 JPN 0R062090 and up N/A N/A
BEL
9.9 1986 - 2017 USA 0A197112 and up N/A N/A
BEL 9461526 and up
9.9 FourStroke 323 cc. 1999 - 2004 USA 0G760300 - 0T979999 850700A08 N/A N/A
BEL 0P075166 - 0P235499
9.9 FourStroke 323 cc., BigFoot Models 1999 - 2004 USA 0G760300 - 0T979999 850700A08 N/A N/A
BEL 0P075166 - 0P235499
9.9 FourStroke Standard Gearcase 2005 - 2017 JPN 0R062090 and up N/A N/A
BEL 0P325500 and up
9.9 FourStroke BigFoot, Non-trim 2005 - 2017 JPN 0R062915 and up N/A N/A
BEL 0P325500 and up
15 1988 - 2017 USA 0B292414 and up N/A N/A
BEL 9542620 and up
15 FourStroke 323cc., Standard Gearcase 1998 - 2008 USA 0G590000 - 1B727495 850700A08 N/A N/A
15 FourStroke 323cc., BigFoot Models 1998 - 2008 USA 0G590000 - 1B727495 850700A08 N/A N/A
15 FourStroke 2008 - 2017 JPN 0R235949 and up N/A(6) N/A N/A
20 FourStroke 2008 - 2017 JPN 0R235168 and up N/A(6) N/A N/A
20 JET 2cycle 1994 1/2 - 2017 USA 0G044027 and up 850700A08 N/A N/A
25 1988 - 2017 USA 0B238464 and up 850700A08 N/A N/A
BEL 9507381 and up
25 (4-Stroke) Carb Models 1998 - 2006 USA 0G590000 and up 822344A13 822573A12 N/A
25 FourStroke EFI Models 2006 - 2017 JPN 0R106999 and up N/A(6) 822573A12 N/A
25 Jet FourStroke 2007 - 2017 JPN N/A(6) N/A N/A
30 (3 cyl.)(4-Stroke) Non-BigFoot 2001 - 2005 USA 0T294065 - 1B226999 8M0055002 N/A 8M0098264
30 FourStroke EFI Models 2006 - 2017 JPN 0R106999 and up N/A(6) 822573A12 N/A
40 (2 cyl.) Long shaft only. 1996 1/2 - 2017 USA 0G380074 and up 822344A13 822573A12 N/A
1996 1/2 - 2017 BEL 9928059 and up
40 (3 cyl.)(4-Stroke) Standard Gearcase 2001 - 2005 USA 0T294065 - 1B226999 8M0055002 N/A 8M0098264
40 (3 cyl.)(4-Stroke) EFI Models 2006 - 2007 USA 1B227000 - 1B344398 8M0055003 822573A13 N/A
2006 - 2007 CHN 1C000001 - 1C049738
40 (3 cyl.) FourStroke Standard Gearcase 2007 - 2017 CHN 1C049739 and up N/A(6) N/A 8M0098264
