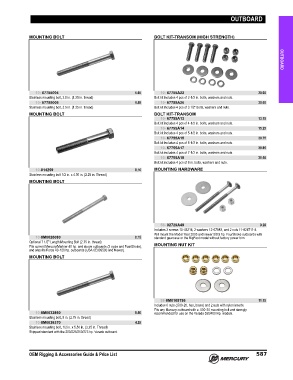

Page 600 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

MOUNTING BOLT BOLT KIT-TRANSOM (HIGH STRENGTH) OUTBOARD

10- 67755005 5.65 10- 67755A22 30.00
Stainless mounting bolt, 2.5 in. (1.25 in. thread) Bolt kit includes 4 pcs of 2‑1/2 in. bolts, washers and nuts.
10- 67755006 9.55 10- 67755A26 30.00
Stainless mounting bolt, 3.5 in. (1.25 in. thread) Bolt kit includes 4 pcs of 3 1/2" bolts, washers and nuts.
MOUNTING BOLT BOLT KIT-TRANSOM
10- 67755A13 13.15
Bolt kit includes 4 pcs of 4‑1/2 in. bolts, washers and nuts.
10- 67755A14 15.25
Bolt kit includes 4 pcs of 5‑1/2 in. bolts, washers and nuts.
10- 67755A15 30.75
Bolt kit includes 4 pcs of 6‑1/2 in. bolts, washers and nuts.
10- 67755A17 38.85
Bolt kit includes 4 pcs of 7‑1/2 in. bolts, washers and nuts.
10- 67755A18 35.50
Bolt kit includes 4 pcs of 8 in. bolts, washers and nuts.
10-814259 8.10 MOUNTING HARDWARE
Stainless mounting bolt 1/2 in. x 4.00 in. (2.25 in. Thread)
MOUNTING BOLT

56- 92729A49 9.20
Includes 2 screws 10‑43216, 2 washers 12‑67983, and 2 nuts 11‑826711‑8.
Will mount the Model Year 2005 and newer 8/9.9 hp. FourStroke outboards with
10-8M0028080 8.15 standard gearcase or the BigFoot model without factory power trim.
Optional 7 1/2" Length Mounting Bolt (2.75 in. thread)
Fits current Mercury/Mariner 40 hp. and above outboards (2 cycle and FourStroke), MOUNTING NUT KIT
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer).
MOUNTING BOLT

98-8M0109756 11.15
Includes 6 nuts (.500‑20, hex, brass) and 2 nuts with nylon inserts.
Fits any Mercury outboard with a .500‑20 mounting bolt and strongly
10-8M0032860 8.50 recommended for use on the Verado 350/400 Hp. models.
Stainless mounting bolt, 8 in. (2.75 in. thread)
10-8M0038370 4.25
Stainless mounting bolt, 1/2 in. x 5.50 in. (3.25 in. Thread)
Shipped standard with the 200/225/250/275 hp. Verado outboard.

OEM Rigging & Accessories Guide & Price List 587
