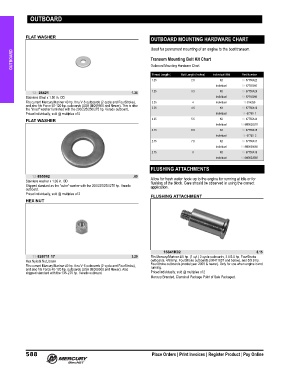

Page 601 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

FLAT WASHER
OUTBOARD MOUNTING HARDWARE CHART
Used for permanent mounting of an engine to the boat transom.
OUTBOARD Transom Mounting Bolt Kit Chart

Outboard Mounting Hardware Chart

Thread Length ( Bolt Length (Inches) Individual / Kit Part Number
1.25 2.5 Kit 10- 67755A22
Individual 10- 67755005
12- 28421 1.35 1.25 3.5 Kit 10- 67755A26
Stainless Steel x 1.50 in. OD Individual 10- 67755006
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke), 2.25 4 Individual 10-814259
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). This is also
the "inner" washer furnished with the 200/225/250/275 hp. Verado outboard. 2.25 4.5 Kit 10- 67755A13
Priced individually, sold @ multiples of 5 Individual 10- 67755 1
FLAT WASHER 3.25 5.5 Kit 10- 67755A14
Individual 10-8M0038370
2.75 6.5 Kit 10- 67755A15
Individual 10- 67755 2
2.75 7.5 Kit 10- 67755A17
Individual 10-8M0028080
2.75 8 Kit 10- 67755A18
Individual 10-8M0032860
FLUSHING ATTACHMENTS
12-895062 .65
Stainless washer x 1.06 in. OD Allow for fresh water hook‑up to the engine for running at idle or for
flushing of the block. Care should be observed in using the correct
Shipped standard as the "outer" washer with the 200/225/250/275 hp. Verado application.
outboard.
Priced individually, sold @ multiples of 2
FLUSHING ATTACHMENT
HEX NUT

16841K02 8.15
11-826711 17 3.20 Fits Mercury/Mariner 4/5 hp. (1 cyl.) 2 cycle outboards, 2.5/3.5 hp. FourStroke
Hex Nylock Nut, brass outboards, 4/5/6 hp. FourStroke outboards (0R411837 and below), and 8/9.9 hp.
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke), FourStroke outboards (model year 2005 & newer). Only for use when engine is not
running.
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). Also
shipped standard with the 135‑275 hp. Verado outboard. Priced individually, sold @ multiples of 2
Mercury Branded, Clamshell Package Point of Sale Packaged.
