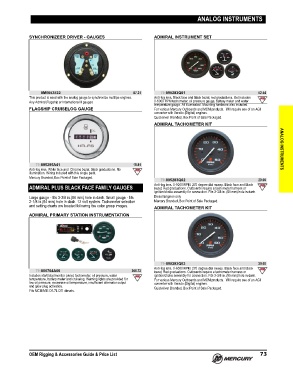

Page 86 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ANALOG INSTRUMENTS

SYNCHRONIZEER DRIVER - GAUGES ADMIRAL INSTRUMENT SET

8M0053532 87.31 79-895283Q01 52.54
This product is used with the analog gauge to synchronize multilpe engines. Anti‑fog lens. Black face and black bezel; red graduations. Set includes
Any Admiral,Flagship or International II gauges 0‑6000 RPM tachometer, oil pressure gauge, battery meter and water
temperature gauge. All illuminated. Mounting hardware also included.
FLAGSHIP CRUISELOG GAUGE For various Mercury Outboards and MCM products. Will require use of an AGI
converter with Verado (Digital) engines.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL TACHOMETER KIT

79-895295A41 18.81 ANALOG INSTRUMENTS
Anti‑fog lens. White face and Chrome bezel; black graduations. No
illumination. Wiring included with this single pack.
Mercury Branded, Box Point of Sale Packaged.
79-895283Q02 29.00
ADMIRAL PLUS BLACK FACE FAMILY GAUGES Anti‑fog lens. 0‑5000 RPM. 270 degree dial sweep. Black face and Black
bezel; Red graduations. Outboards require a tachometer harness or
ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
Large gauge ‑ fits 3‑3/8 in.(86 mm) hole in dash. Small gauge ‑ fits Diesel Engines only
2‑1/8 in.(54 mm) hole in dash. 12 volt system. Tachometer selection Mercury Branded, Box Point of Sale Packaged.
and setting charts are located following the color group images. ADMIRAL TACHOMETER KIT
ADMIRAL PRIMARY STATION INSTRUMENTATION

79-895283Q03 29.00
Anti‑fog lens. 0‑6000 RPM. 270 degree dial sweep. Black face and Black
79-850764A06 365.72 bezel; Red graduations. Outboards require a tachometer harness or
Includes start/stop/monitor panel, tachometer, oil pressure, water ignition/choke assembly for connection. Fits 3‑3/8 in. (85 mm) hole in dash.
temperature, battery meter and cruiselog. Warning lights are provided for For various Mercury Outboards and MCM products. Will require use of an AGI
low oil pressure, excessive oil temperature, insufficient alternator output converter with Verado (Digital) engines.
and glow plug activation. Quicksilver Branded, Box Point of Sale Packaged.
Fits MCM/MIE D1.7L DTI diesels.

OEM Rigging & Accessories Guide & Price List 73
