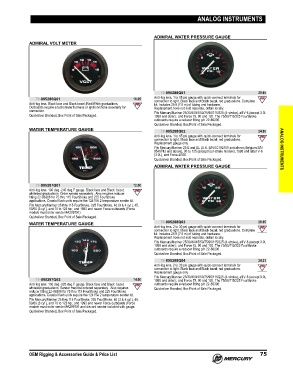

Page 88 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ANALOG INSTRUMENTS

ADMIRAL WATER PRESSURE GAUGE
ADMIRAL VOLT METER

79-895288Q01 28.85
79-895286Q01 10.05 Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations. Complete
Anti‑fog lens. Black face and Black bezel; Red/White graduations. kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Outboards require a tachometer harness or ignition/choke assembly for Replacement hose not sold separate, obtain locally.
connection. Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
Quicksilver Branded, Box Point of Sale Packaged. 1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
WATER TEMPERATURE GAUGE 79-895288Q02 24.85
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations.
Replacement gauge only.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N ANALOG INSTRUMENTS
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE

79-895287Q01 12.00
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel;
white/red graduations. Order sender seperately.. Also requires reducer
fitting 22‑86306 for 75 thru 115 FourStroke and 225 FourStroke
applications. Coastal flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791)
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q03 28.85
WATER TEMPERATURE GAUGE
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations. Complete
kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q04 24.21
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations.
Replacement gauge only.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
79-895287Q02 14.00 1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
Anti‑fog lens. 100 deg.‑220 deg.F gauge. Black face and Black bezel; outboards require a reducer fitting p/n 22‑86306.
white/red graduations. Sender must be ordered seperately. Also requires Quicksilver Branded, Box Point of Sale Packaged.
reducer fitting 22‑86306 for 75 thru 115 FourStroke and 225 FourStroke
applications. Coastal flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791 and discard sender included with gauge.
Quicksilver Branded, Box Point of Sale Packaged.

OEM Rigging & Accessories Guide & Price List 75
