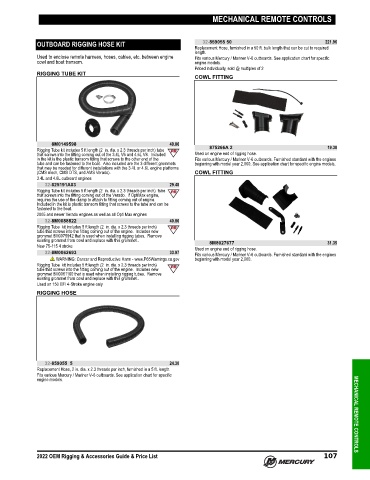

Page 120 - Rigging and Accessories Guide (2022) - 8M0187689

MECHANICAL REMOTE CONTROLS

OUTBOARD RIGGING HOSE KIT 32-859055 50 221.96
Replacement Hose, furnished in a 50 ft. bulk length that can be cut to required
length.
Used to enclose remote harness, hoses, cables, etc. between engine Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
cowl and boat transom. engine models.
Priced individually, sold @ multiples of 2
RIGGING TUBE KIT
COWL FITTING

8M0149598 40.86
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube 875266A 2 19.30
that screws into the fitting coming out of the 3.4L V6 and 4.6L V8. Included Used on engine end of rigging hose.
in the kit is the plastic transom fitting that screws to the other end of the Fits various Mercury / Mariner V‑6 outboards. Furnished standard with the engines
tube and can be fastened to the boat. Also included are the 3 different grommets beginning with model year 2,000. See application chart for specific engine models.
that may be needed for different installations with the 3.4L or 4.6L engine platforms
(CMS mech, CMS DTS, and AMS Verado). COWL FITTING
3.4L and 4.6L outboard engines
32-825191A03 29.48
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube
that screws into the fitting coming out of the Verado. If OptiMax engine,
requires the use of the clamp to attach to fitting coming out of engine.
Included in the kit is plastic transom fitting that screws to the tube and can be
fastened to the boat.
2005 and newer Verado engines as well as all Opti Max engines
32-8M0088822 40.86
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch)
tube that screws into the fitting coming out of the engine. Includes new
grommet 8M0075942 that is used when installing rigging tubes. Remove
existing grommet from cowl and replace with this grommet.. 8M8027677 31.35
New 75‑115 4 stroke Used on engine end of rigging hose.
32-8M0062693 33.97 Fits various Mercury / Mariner V‑6 outboards. Furnished standard with the engines
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov beginning with model year 2,000.
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch)
tube that screws into the fitting coming out of the engine. Includes new
grommet 8M0061160 that is used when installing rigging tubes. Remove
existing grommet from cowl and replace with this grommet..
Used on 150 EFI 4‑Stroke engine only
RIGGING HOSE

32-859055 5 24.30
Replacement Hose, 2 in. dia. x 2.3 threads per inch, furnished in a 5 ft. length.
Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
engine models. MECHANICAL REMOTE CONTROLS
