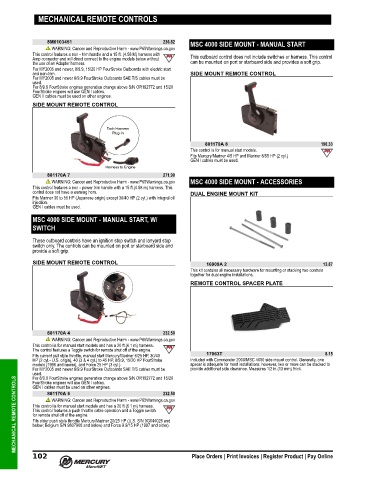

Page 115 - Rigging and Accessories Guide (2022) - 8M0187689

MECHANICAL REMOTE CONTROLS

8M0103451 236.82 MSC 4000 SIDE MOUNT - MANUAL START
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This control features a non ‑ trim handle and a 15 ft. (4.58 M) harness with This outboard control does not include switches or harness. This control
Amp connector and will direct connect to the engine models below without
the use of an Adapter harness. can be mounted on port or starboard side and provides a soft grip.
For MY2005 and newer, 8/9.9, 15/20 HP FourStroke Outboards with electric start
and non‑trim. SIDE MOUNT REMOTE CONTROL
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be
used.
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
FourStroke engines will use GEN I cables.
GEN II cables must be used on other engines.
SIDE MOUNT REMOTE CONTROL

881170A 8 190.33
This control is for manual start models.
Fits Mercury/Mariner 4/5 HP and Mariner 8/55 HP (2 cyl.)
GEN I cables must be used.

881170A 7 271.90
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov MSC 4000 SIDE MOUNT - ACCESSORIES
This control features a non ‑ power trim handle with a 15 ft.(4.58 m) harness. This
control does not have a warning horn. DUAL ENGINE MOUNT KIT
Fits Mariner 30 to 55 HP (Japanese origin) except 30/40 HP (2 cyl.) with integral oil
injection.
GEN I cables must be used.
MSC 4000 SIDE MOUNT - MANUAL START, W/
SWITCH

These outboard controls have an ignition stop switch and lanyard stop
switch only. The controls can be mounted on port or starboard side and
provide a soft grip.

SIDE MOUNT REMOTE CONTROL 16909A 2 13.87
This kit contains all necessary hardware for mounting or stacking two controls
together for dual engine installations.
REMOTE CONTROL SPACER PLATE

881170A 4 232.50
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This control is for manual start models and has a 20 ft.(6.1 m) harness.
The control features a Toggle switch for remote shut off of the engine.
Fits current pull style throttle, manual start Mercury/Mariner 6/25 HP, 30/40 17063T 8.15
HP (2 cyl.‑ U.S. origin), 40 (3 & 4 cyl.) to 45 HP, 8/9.9, 15/20 HP FourStroke Included with Commander 2000/MSC 4000 side mount control. Generally, one
models (1996 and newer), and Force 25 HP (3 cyl.) spacer is adequate for most installations: however, two or more can be stacked to
For MY2005 and newer 8/9.9 FourStroke Outboards SAE T/S cables must be provide additional side clearance. Measures 1/2 in.(13 mm) thick.
used. 881170A 6 232.50
For 8/9.9 FourStroke engines generation change above S/N OR192772 and 15/20
MECHANICAL REMOTE CONTROLS This control is for manual start models and has a 20 ft.(6.1 m) harness.
FourStroke engines will use GEN I cables.
GEN I cables must be used on other engines.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This control features a push throttle cable operation and a Toggle switch
for remote shut off of the engine.
Fits older push style throttle Mercury/Mariner 20/25 HP (U.S. S/N 0G044026 and
below; Belgium S/N 9807908 and below) and Force 9.9/15 HP (1997 and older).
