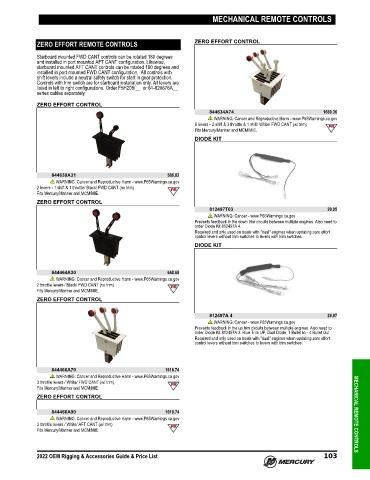

Page 116 - Rigging and Accessories Guide (2022) - 8M0187689
P. 116

MECHANICAL REMOTE CONTROLS



             ZERO EFFORT REMOTE CONTROLS                         ZERO EFFORT CONTROL

             Starboard mounted FWD CANT controls can be rotated 180 degrees
             and installed in port mounted AFT CANT configuration. Likewise,
             starboard mounted AFT CANT controls can be rotated 180 degrees and
             installed in port mounted FWD CANT configuration.  All controls with
             shift levers include a neutral safety switch for start in gear protection.
             Controls with trim switch are for starboard installation only. All levers are
             listed in left to right configurations. Order F5H208/__  or 64‑820676A__
             series cables separately.
             ZERO EFFORT CONTROL
                                                                      844634A74                             1669.36
                                                                        WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
                                                                 6 levers ‑ 2 shift & 3 throttle & 1 shift/ White/ FWD CANT (w/ trim)
                                                                 Fits Mercury/Mariner and MCM/MIE.
                                                                 DIODE KIT






                  844630A31                             586.83
                    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
             2 levers ‑ 1 shift & 1 throttle/ Black/ FWD CANT (no trim)
             Fits Mercury/Mariner and MCM/MIE.
             ZERO EFFORT CONTROL
                                                                      812497T03                              28.95
                                                                        WARNING: Cancer - www.P65Warnings.ca.gov
                                                                 Prevents feedback in the down trim circuits between multiple engines. Also need to
                                                                 order Diode Kit 812497A 4.
                                                                 Required and only used on boats with "dual" engines when updating zero effort
                                                                 control levers without trim switches to levers with trim switches.
                                                                 DIODE KIT




                  844464A30                             648.68
                    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
             2 throttle levers / Black/ FWD CANT (no trim)
             Fits Mercury/Mariner and MCM/MIE.
             ZERO EFFORT CONTROL

                                                                      812497A 4                              28.97
                                                                        WARNING: Cancer - www.P65Warnings.ca.gov
                                                                 Prevents feedback in the up trim circuits between multiple engines. Also need to
                                                                 order Diode Kit 812497A 3. Blue Trim UP, Dual Diode, 1 Bullet In ‑ 4 Bullet Out
                                                                 Required and only used on boats with "dual" engines when updating zero effort
                                                                 control levers without trim switches to levers with trim switches.




                  844466A70                             1018.74
                    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
             3 throttle levers / White/ FWD CANT (w/ trim)
             Fits Mercury/Mariner and MCM/MIE.
             ZERO EFFORT CONTROL

                  844466A90                             1018.74                                                       MECHANICAL REMOTE CONTROLS
                    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
             3 throttle levers / White/ AFT CANT (w/ trim)
             Fits Mercury/Mariner and MCM/MIE.



             2022 OEM Rigging & Accessories Guide & Price List                                              103
