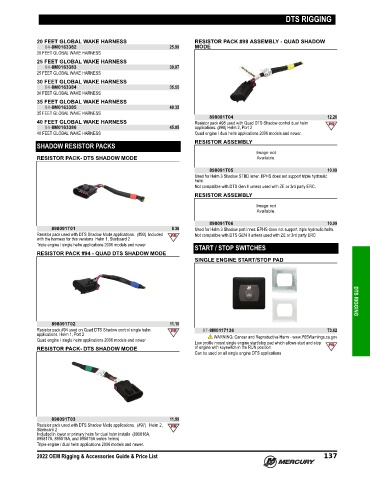

Page 150 - Rigging and Accessories Guide (2022) - 8M0187689

DTS RIGGING

20 FEET GLOBAL WAKE HARNESS RESISTOR PACK #98 ASSEMBLY - QUAD SHADOW
84-8M0163382 25.99 MODE
20 FEET GLOBAL WAKE HARNESS
25 FEET GLOBAL WAKE HARNESS
84-8M0163383 30.97
25 FEET GLOBAL WAKE HARNESS
30 FEET GLOBAL WAKE HARNESS
84-8M0163384 35.55
30 FEET GLOBAL WAKE HARNESS
35 FEET GLOBAL WAKE HARNESS
84-8M0163385 40.35
35 FEET GLOBAL WAKE HARNESS
898091T04 12.26
40 FEET GLOBAL WAKE HARNESS Resistor pack #98 used with Quad DTS Shadow control dual helm
84-8M0163386 45.05 applications. (#98) Helm 2, Port 2
40 FEET GLOBAL WAKE HARNESS Quad engine / dual helm applications 2006 models and newer.
RESISTOR ASSEMBLY
SHADOW RESISTOR PACKS
RESISTOR PACK- DTS SHADOW MODE
898091T05 10.09
Used for Helm 3 Shadow STBD inner. EPHS does not support triple hydraulic
helm.
Not compatible with DTS Gen II unless used with ZE or 3rd party ERC.
RESISTOR ASSEMBLY

898091T06 10.09
898091T01 8.36 Used for Helm 3 Shadow port inner. EPHS does not support triple hydraulic helm.
Resistor pack used with DTS Shadow Mode applications. (#93) Included Not compatible with DTS GEN II unless used with ZE or 3rd party ERC
with the harness for this versions Helm 1, Starboard 2
Triple engine / single helm applications 2006 models and newer
START / STOP SWITCHES
RESISTOR PACK #94 - QUAD DTS SHADOW MODE
SINGLE ENGINE START/STOP PAD

898091T02 11.10 DTS RIGGING
Resistor pack #94 used on Quad DTS Shadow control single helm 87-8M0117136 73.62
applications. Helm 1, Port 2 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Quad engine / single helm applications 2006 models and newer
Low profile mount single engine start/stop pad which allows start and stop
RESISTOR PACK- DTS SHADOW MODE of engine with keyswitch in the RUN position.
Can be used on all single engine DTS applications

898091T03 11.99
Resistor pack used with DTS Shadow Mode applications. (#97) Helm 2,
Starboard 2
Included in lower or primary helm for dual helm installs (895816A,
895817A, 895818A, and 895819A series helms)
Triple engine / dual helm applications 2006 models and newer.
2022 OEM Rigging & Accessories Guide & Price List 137
