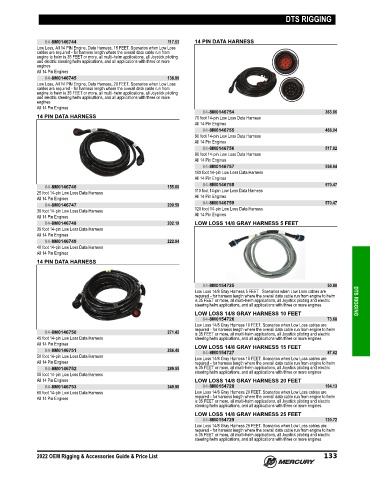

Page 146 - Rigging and Accessories Guide (2022) - 8M0187689

DTS RIGGING

84-8M0146744 117.53 14 PIN DATA HARNESS
Low Loss, All 14 PIN Engine, Data Harness, 15 FEET. Scenarios when Low Loss
cables are required ‑ for harness length where the overall data cable run from
engine to helm is 35 FEET or more, all multi‑helm applications, all Joystick piloting
and electric steering helm applications, and all applications with three or more
engines
All 14 Pin Engines
84-8M0146745 138.00
Low Loss, All 14 PIN Engine, Data Harness, 20 FEET. Scenarios when Low Loss
cables are required ‑ for harness length where the overall data cable run from
engine to helm is 35 FEET or more, all multi‑helm applications, all Joystick piloting
and electric steering helm applications, and all applications with three or more
engines
All 14 Pin Engines
84-8M0146754 363.66
14 PIN DATA HARNESS 70 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146755 468.04
80 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146756 517.82
90 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146757 558.64
100 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146758 570.47
84-8M0146746 155.60
25 foot 14‑pin Low Loss Data Harness 110 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines All 14 Pin Engines
84-8M0146747 209.59 84-8M0146759 570.47
30 foot 14‑pin Low Loss Data Harness 120 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines All 14 Pin Engines
84-8M0146748 202.19 LOW LOSS 14/8 GRAY HARNESS 5 FEET
35 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
84-8M0146749 222.04
40 foot 14‑pin Low Loss Data Harness
All 14 Pin Engines
14 PIN DATA HARNESS

84-8M0154725 50.80
Low Loss 14/8 Gray Harness 5 FEET . Scenarios when Low Loss cables are
required ‑ for harness length where the overall data cable run from engine to helm
is 35 FEET or more, all multi‑helm applications, all Joystick piloting and electric DTS RIGGING
steering helm applications, and all applications with three or more engines
LOW LOSS 14/8 GRAY HARNESS 10 FEET
84-8M0154726 73.68
Low Loss 14/8 Gray Harness 10 FEET. Scenarios when Low Loss cables are
required ‑ for harness length where the overall data cable run from engine to helm
84-8M0146750 271.42 is 35 FEET or more, all multi‑helm applications, all Joystick piloting and electric
45 foot 14‑pin Low Loss Data Harness steering helm applications, and all applications with three or more engines
All 14 Pin Engines LOW LOSS 14/8 GRAY HARNESS 15 FEET
84-8M0146751 286.45 84-8M0154727 87.62
50 foot 14‑pin Low Loss Data Harness Low Loss 14/8 Gray Harness 15 FEET. Scenarios when Low Loss cables are
All 14 Pin Engines required ‑ for harness length where the overall data cable run from engine to helm
84-8M0146752 289.55 is 35 FEET or more, all multi‑helm applications, all Joystick piloting and electric
55 foot 14‑pin Low Loss Data Harness steering helm applications, and all applications with three or more engines
All 14 Pin Engines LOW LOSS 14/8 GRAY HARNESS 20 FEET
84-8M0146753 349.90 84-8M0154728 104.13
60 foot 14‑pin Low Loss Data Harness Low Loss 14/8 Gray Harness 20 FEET. Scenarios when Low Loss cables are
All 14 Pin Engines required ‑ for harness length where the overall data cable run from engine to helm
is 35 FEET or more, all multi‑helm applications, all Joystick piloting and electric
steering helm applications, and all applications with three or more engines
LOW LOSS 14/8 GRAY HARNESS 25 FEET
84-8M0154729 120.72
Low Loss 14/8 Gray Harness 25 FEET. Scenarios when Low Loss cables are
required ‑ for harness length where the overall data cable run from engine to helm
is 35 FEET or more, all multi‑helm applications, all Joystick piloting and electric
steering helm applications, and all applications with three or more engines

2022 OEM Rigging & Accessories Guide & Price List 133
