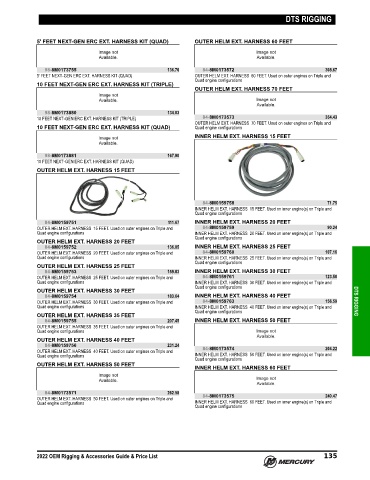

Page 148 - Rigging and Accessories Guide (2022) - 8M0187689

DTS RIGGING

5' FEET NEXT-GEN ERC EXT. HARNESS KIT (QUAD) OUTER HELM EXT. HARNESS 60 FEET

98-8M0173755 136.76 84-8M0173572 308.67
5' FEET NEXT‑GEN ERC EXT. HARNESS KIT (QUAD) OUTER HELM EXT. HARNESS 60 FEET. Used on outer engines on Triple and
Quad engine configurations
10 FEET NEXT-GEN ERC EXT. HARNESS KIT (TRIPLE)
OUTER HELM EXT. HARNESS 70 FEET

98-8M0173880 134.03
10 FEET NEXT‑GEN ERC EXT. HARNESS KIT (TRIPLE) 84-8M0173573 354.43
OUTER HELM EXT. HARNESS 70 FEET. Used on outer engines on Triple and
10 FEET NEXT-GEN ERC EXT. HARNESS KIT (QUAD) Quad engine configurations
INNER HELM EXT. HARNESS 15 FEET

98-8M0173881 167.90
10 FEET NEXT‑GEN ERC EXT. HARNESS KIT (QUAD)
OUTER HELM EXT. HARNESS 15 FEET

84-8M0159758 71.75
INNER HELM EXT. HARNESS 15 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
84-8M0159751 111.67 INNER HELM EXT. HARNESS 20 FEET
OUTER HELM EXT. HARNESS 15 FEET. Used on outer engines on Triple and 84-8M0159759 90.24
Quad engine configurations INNER HELM EXT. HARNESS 20 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
OUTER HELM EXT. HARNESS 20 FEET
84-8M0159752 136.05 INNER HELM EXT. HARNESS 25 FEET
OUTER HELM EXT. HARNESS 20 FEET. Used on outer engines on Triple and 84-8M0159760 107.16
Quad engine configurations INNER HELM EXT. HARNESS 25 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
OUTER HELM EXT. HARNESS 25 FEET
84-8M0159753 159.83 INNER HELM EXT. HARNESS 30 FEET
OUTER HELM EXT. HARNESS 25 FEET. Used on outer engines on Triple and 84-8M0159761 123.56
Quad engine configurations INNER HELM EXT. HARNESS 30 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
OUTER HELM EXT. HARNESS 30 FEET
84-8M0159754 183.64 INNER HELM EXT. HARNESS 40 FEET
OUTER HELM EXT. HARNESS 30 FEET. Used on outer engines on Triple and 84-8M0159763 156.59 DTS RIGGING
Quad engine configurations INNER HELM EXT. HARNESS 40 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
OUTER HELM EXT. HARNESS 35 FEET
84-8M0159755 207.45 INNER HELM EXT. HARNESS 50 FEET
OUTER HELM EXT. HARNESS 35 FEET. Used on outer engines on Triple and
Quad engine configurations
OUTER HELM EXT. HARNESS 40 FEET
84-8M0159756 231.24
OUTER HELM EXT. HARNESS 40 FEET. Used on outer engines on Triple and 84-8M0173574 204.22
Quad engine configurations INNER HELM EXT. HARNESS 50 FEET. Used on inner engine(s) on Triple and
Quad engine configurations
OUTER HELM EXT. HARNESS 50 FEET
INNER HELM EXT. HARNESS 60 FEET

84-8M0173571 262.58
OUTER HELM EXT. HARNESS 50 FEET. Used on outer engines on Triple and 84-8M0173575 240.47
Quad engine configurations INNER HELM EXT. HARNESS 60 FEET. Used on inner engine(s) on Triple and
Quad engine configurations

2022 OEM Rigging & Accessories Guide & Price List 135
