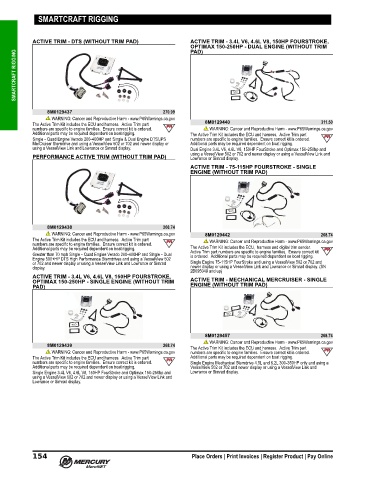

Page 167 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

ACTIVE TRIM - DTS (WITHOUT TRIM PAD) ACTIVE TRIM - 3.4L V6, 4.6L V8, 150HP FOURSTROKE,
OPTIMAX 150-250HP - DUAL ENGINE (WITHOUT TRIM
PAD)
SMARTCRAFT RIGGING

8M0129437 270.99
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Active Trim Kit includes the ECU and harness. Active Trim part 8M0129440 311.50
numbers are specific to engine families. Ensure correct kit is ordered. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Additional parts may be required dependent on boat rigging. The Active Trim Kit includes the ECU and harness. Active Trim part
Single ‑ Quad Engine Verado 200‑400HP and Single & Dual Engine DTS/JPS numbers are specific to engine families. Ensure correct kit is ordered.
MerCruiser Sterndrive and using a VesselView 502 or 702 and newer display or Additional parts may be required dependent on boat rigging.
using a VesselView Link and Lowrance or Simrad display. Dual Engine 3.4L V6, 4.6L V8, 150HP FourStroke and Optimax 150‑250hp and
using a VesselView 502 or 702 and newer display or using a VesselView Link and
PERFORMANCE ACTIVE TRIM (WITHOUT TRIM PAD) Lowrance or Simrad display.
ACTIVE TRIM - 75-115HP FOURSTROKE - SINGLE
ENGINE (WITHOUT TRIM PAD)

8M0129438 268.74
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 8M0129442 268.74
The Active Trim Kit includes the ECU and harness. Active Trim part WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
numbers are specific to engine families. Ensure correct kit is ordered.
Additional parts may be required dependent on boat rigging. The Active Trim Kit includes the ECU, harness and digital trim sender.
Greater than 70 mph Single ‑ Quad Engine Verado 200‑400HP and Single ‑ Dual Active Trim part numbers are specific to engine families. Ensure correct kit
is ordered. Additional parts may be required dependent on boat rigging.
Engine 500+HP DTS High Performance Sterndrives and using a VesselView 502
or 702 and newer display or using a VesselView Link and Lowrance or Simrad Single Engine 75‑115HP FourStroke and using a VesselView 502 or 702 and
display. newer display or using a VesselView Link and Lowrance or Simrad display. (SN
2B095049 and up)
ACTIVE TRIM - 3.4L V6, 4.6L V8, 150HP FOURSTROKE,
OPTIMAX 150-250HP - SINGLE ENGINE (WITHOUT TRIM ACTIVE TRIM - MECHANICAL MERCRUISER - SINGLE
PAD) ENGINE (WITHOUT TRIM PAD)

8M0129457 268.74
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8M0129439 268.74 The Active Trim Kit includes the ECU and harness. Active Trim part
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov numbers are specific to engine families. Ensure correct kit is ordered.
The Active Trim Kit includes the ECU and harness. Active Trim part Additional parts may be required dependent on boat rigging.
numbers are specific to engine families. Ensure correct kit is ordered. Single Engine Mechanical Sterndrive 4.5L and 6.2L 300‑350HP only and using a
Additional parts may be required dependent on boat rigging. VesselView 502 or 702 and newer display or using a VesselView Link and
Single Engine 3.4L V6, 4.6L V8, 150HP FourStroke and Optimax 150‑250hp and Lowrance or Simrad display.
using a VesselView 502 or 702 and newer display or using a VesselView Link and
Lowrance or Simrad display.
