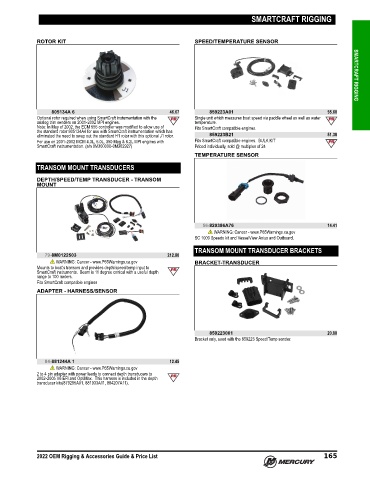

Page 178 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

ROTOR KIT SPEED/TEMPERATURE SENSOR SMARTCRAFT RIGGING

805134A 6 46.67 859223A01 55.60
Optional rotor required when using SmartCraft instumentation with the Single unit which measures boat speed via paddle wheel as well as water
analog trim senders on 2001‑2002 MPI engines. temperature.
Note: In May of 2002, the ECM 555 controller was modified to allow use of Fits SmartCraft compatible engines.
the standard rotor 805134A4 for use with SmartCraft instrumentation which has
eliminated the need to swap out the standard H1 rotor with this optional J1 rotor. 859223B21 51.38
For use on 2001‑2002 MCM 4.3L, 5.0L, 350 Mag & 6.2L MPI engines with Fits SmartCraft compatible engines. BULK KIT
SmartCraft instrumentation. (s/n 0M300000‑0M362927) Priced individually, sold @ multiples of 24
TEMPERATURE SENSOR

TRANSOM MOUNT TRANSDUCERS
DEPTH/SPEED/TEMP TRANSDUCER - TRANSOM
MOUNT

56-820386A76 14.41
WARNING: Cancer - www.P65Warnings.ca.gov
SC 1000 Speedo kit and VesselView Axius and Outboard.

TRANSOM MOUNT TRANSDUCER BRACKETS
79-8M0122503 212.80
WARNING: Cancer - www.P65Warnings.ca.gov BRACKET-TRANSDUCER
Mounts to boat's transom and provides depth/speed/temp input to
SmartCraft instruments. Beam is 11 degree conical with a useful depth
range to 100 meters.
Fits SmartCraft compatible engines
ADAPTER - HARNESS/SENSOR

859223001 20.80
Bracket only, used with the 859223 Speed/Temp sender.

84-881244A 1 12.45
WARNING: Cancer - www.P65Warnings.ca.gov
2 to 4 pin adapter with power leads to connect depth transducers to
2002‑2005 V6 EFI and OptiMax. This harness is included in the depth
transducer kits(879295A01, 881933A11, 884207A11).

2022 OEM Rigging & Accessories Guide & Price List 165
