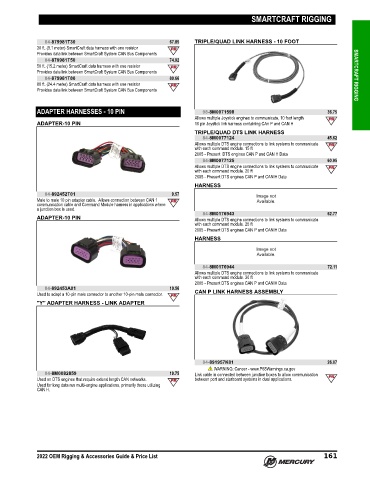

Page 174 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

84-879981T30 67.85 TRIPLE/QUAD LINK HARNESS - 10 FOOT
30 ft. (9.1 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T50 74.92
50 ft. (15.2 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components
84-879981T80 80.66 SMARTCRAFT RIGGING
80 ft. (24.4 meter) SmartCraft data harness with one resistor
Provides data link between SmartCraft System CAN Bus Components

ADAPTER HARNESSES - 10 PIN 98-8M0071598 36.75
Allows multiple Joystick engines to communicate, 10 foot length
ADAPTER-10 PIN 10 pin Joystick link harness containing CAn P and CAN H
TRIPLE/QUAD DTS LINK HARNESS
84-8M0077124 45.62
Allows multiple DTS engine connections to link systems to communicate
with each command module. 15 ft
2005 ‑ Present DTS engines CAN P and CAN H Data
84-8M0077125 60.95
Allows multiple DTS engine connections to link systems to communicate
with each command module. 20 ft
2005 ‑ Present DTS engines CAN P and CAN H Data
HARNESS
84-892452T01 9.57
Male to male 10 pin adapter cable. Allows connection between CAN 1
communication cable and Command Module harness in applications where
a junction box is used.
84-8M0176943 62.77
ADAPTER-10 PIN Allows multiple DTS engine connections to link systems to communicate
with each command module. 25 ft
2005 ‑ Present DTS engines CAN P and CAN H Data
HARNESS

84-8M0176944 72.11
Allows multiple DTS engine connections to link systems to communicate
with each command module. 30 ft
2005 ‑ Present DTS engines CAN P and CAN H Data
84-892453A01 10.56
Used to adapt a 10‑pin male connector to another 10‑pin male connector. CAN P LINK HARNESS ASSEMBLY
"Y" ADAPTER HARNESS - LINK ADAPTER

84-891957K01 26.07
WARNING: Cancer - www.P65Warnings.ca.gov
84-8M0082859 19.75 Link cable in connected between junction boxes to allow communication
Used on DTS engines that require extend length CAN networks. between port and starboard systems in dual applications.
Used for long data run multi‑engine applications, primarily those utilizing
CAN H.

2022 OEM Rigging & Accessories Guide & Price List 161
