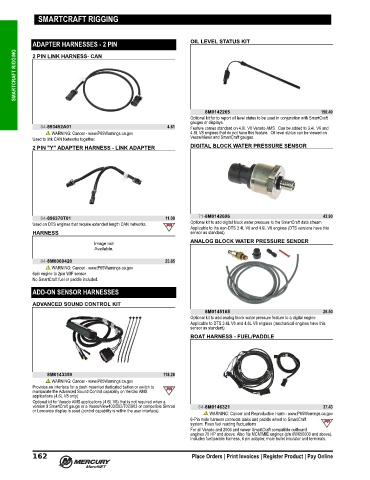

Page 175 - Rigging and Accessories Guide (2022) - 8M0187689

SMARTCRAFT RIGGING

ADAPTER HARNESSES - 2 PIN OIL LEVEL STATUS KIT
SMARTCRAFT RIGGING
2 PIN LINK HARNESS- CAN

8M0142265 150.40
Optional kit for to report oil level status to be used in conjunction with SmartCraft
gauges or displays.
84-893452A01 4.61 Feature comes standard on 4.6L V8 Verado AMS. Can be added to 3.4L V6 and
WARNING: Cancer - www.P65Warnings.ca.gov 4.8L V8 engines that do not have this feature. Oil level status can be viewed on
Used to link CAN Networks together. VesselViews and SmartCraft gauges.
2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER DIGITAL BLOCK WATER PRESSURE SENSOR

84-896370T01 11.09 71-8M0142696 42.90
Used on DTS engines that require extended length CAN networks. Optional kit to add digital block water pressure to the SmartCraft data stream
Applicable to the non‑DTS 3.4L V6 and 4.6L V8 engines (DTS versions have this
HARNESS sensor as standard)
ANALOG BLOCK WATER PRESSURE SENDER

84-8M0060420 23.85
WARNING: Cancer - www.P65Warnings.ca.gov
6pin engine to 2pin WIF sensor
No SmartCraft fuel or paddle included.
ADD-ON SENSOR HARNESSES

ADVANCED SOUND CONTROL KIT
8M0145165 26.50
Optional kit to add analog block water pressure feature to a digital engine
Applicable to DTS 3.4L V6 and 4.6L V8 engines (mechanical engines have this
sensor as standard)
BOAT HARNESS - FUEL/PADDLE

8M0143359 118.28
WARNING: Cancer - www.P65Warnings.ca.gov
Provides an interface for a dash‑mounted dedicated button or switch to
manipulate the Advanced Sound Control capability on Verdao AMS
applications (4.6L V8 only)
Optional kit for Verado AMS applications (4.6L V8) that is not required when a
version 9 SmartCraft gauge or a VesselView403/502/702/903 or compatible Simrad 84-8M0146321 37.43
or Lowrance display is used (control capability is within the user interface).
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
6‑Pin male harness connects tanks and paddle wheel to SmartCraft
system. Fixes fuel reading fluctuations
For all Verado and 2006 and newer SmartCraft compatible outboard
engines 75 HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above).
Includes fuel/paddle harness, 6 pin adapter, male bullet insulator and terminals.
