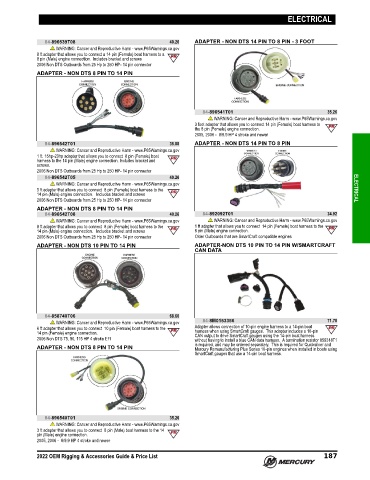

Page 200 - Rigging and Accessories Guide (2022) - 8M0187689

ELECTRICAL

84-896539T08 40.26 ADAPTER - NON DTS 14 PIN TO 8 PIN - 3 FOOT
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8 ft adapter that allows you to connect a 14 pin (Female) boat harness to a
8 pin (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN

84-896541T01 35.26
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
3 foot adapter that allows you to connect 14 pin (Female) boat harness to
the 8 pin (Female) engine connection.
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer
84-896542T01 35.88 ADAPTER - NON DTS 14 PIN TO 8 PIN
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
1 ft. 15hp‑20hp adapter that allows you to connect 8 pin (Female) boat
harness to the 14 pin (Male) engine connection. Includes bracket and
screws.
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
84-896542T05 40.26
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
5 ft adapter that allows you to connect 8 pin (Female) boat harness to the ELECTRICAL
14 pin (Male) engine connection. Includes bracket and screws
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector
ADAPTER - NON DTS 8 PIN TO 14 PIN
84-896542T08 40.26 84-892092T01 34.92
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8 ft adapter that allows you to connect 8 pin (Female) boat harness to the 1 ft adapter that allows you to connect 14 pin (Female) boat harness to the
14 pin (Male) engine connection. Includes bracket and screws 8 pin (Male) engine connection.
2006 Non DTS Outboards from 25 Hp to 250 HP‑ 14 pin connector Older Outboards that are SmartCraft compatible engines
ADAPTER - NON DTS 10 PIN TO 14 PIN ADAPTER-NON DTS 10 PIN TO 14 PIN W/SMARTCRAFT
CAN DATA

84-858740T06 68.60
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 84-8M0153356 71.70
6 ft adapter that allows you to connect 10 pin (Female) boat harness to the Adapter allows connection of 10‑pin engine harness to a 14‑pin boat
14 pin (Female) engine connection. harness when using SmartCraft gauges. This adapter includes a 10‑pin
CAN output to drive SmartCraft gauges using the 14‑pin boat harness
2006 Non DTS 75, 90, 115 HP 4 stroke EFI without having to install a blue CAN data harness. A termination resistor 859318T1
ADAPTER - NON DTS 8 PIN TO 14 PIN is required, and may be ordered separately. This is required for Quicksilver and
Mercury Remanufacturing Plus Series 10‑pin engines when installed in boats using
SmartCraft gauges that use a 14‑pin boat harness.

84-896540T01 35.26
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
3 ft adapter that allows you to connect 8 pin (Male) boat harness to the 14
pin (Male) engine connection.
2005, 2006 ‑ 8/9.9 HP 4 stroke and newer

2022 OEM Rigging & Accessories Guide & Price List 187
