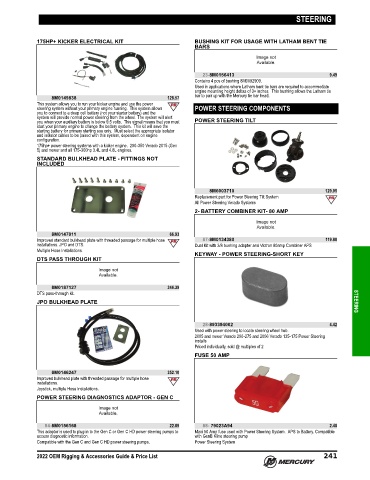

Page 254 - Rigging and Accessories Guide (2022) - 8M0187689

STEERING

175HP+ KICKER ELECTRICAL KIT BUSHING KIT FOR USAGE WITH LATHAM BENT TIE
BARS

23-8M0156413 9.49
Contains 4 pcs of bushing 8M0092909.
Used in applications where Latham bent tie bars are required to accommodate
engine mounting height deltas of 3+ inches. This bushing allows the Latham tie
8M0149838 128.57 bar to pair up with the Mercury tie bar head.
This system allows you to run your kicker engine and use the power
steering system without your primary engine running. This system allows POWER STEERING COMPONENTS
you to connect to a deep cell battery (not your starter battery) and the
system will provide normal power steering from the wheel. The system will alert
you when your auxiliary battery is below 9.5 volts. This signal means that you must POWER STEERING TILT
start your primary engine to change the battery system. This kit will save the
starting battery for primary starting use only. Must select the appropriate isolator
and isolator cables to be paired with this system, dependent on engine
configuration.
175hp+ power steering systems with a kicker engine. 200‑350 Verado 2015 (Gen
5) and newer and all 175‑300hp 3.4L and 4.6L engines.
STANDARD BULKHEAD PLATE - FITTINGS NOT
INCLUDED

8M6003710 129.95
Replacement part for Power Steering Tilt System
All Power Steering Verado Systems
2- BATTERY COMBINER KIT- 80 AMP

8M0147011 66.93
Improved standard bulkhead plate with threaded passage for multiple hose 87-8M0134380 119.80
installations. JPO and DTS. Dual Kit with 3/8 bushing adapter and Victron 80amp Combiner APS
Multiple Hose Installations.
KEYWAY - POWER STEERING-SHORT KEY
DTS PASS THROUGH KIT

8M0187127 346.39
DTS pass‑through kit.
JPO BULKHEAD PLATE STEERING

28-893394002 4.42
Used with power steering to locate steering wheel hub.
2005 and newer Verado 200‑275 and 2006 Verado 135‑175 Power Steering
installs
Priced individually, sold @ multiples of 2
FUSE 50 AMP

8M0146247 352.10
Improved bulkhead plate with threaded passage for multiple hose
installations.
Joystick, multiple Hose Installations.
POWER STEERING DIAGNOSTICS ADAPTOR - GEN C

84-8M0156168 22.89 88- 79023A94 2.48
This adaptor is used to plug in to the Gen C or Gen C HD power steering pumps to Maxi 50 Amp fuse used with Power Steering System. APS to Battery. Compatible
access diagnostic information. with GenB Kline steering pump
Compatible with the Gen C and Gen C HD power steering pumps. Power Steering System
