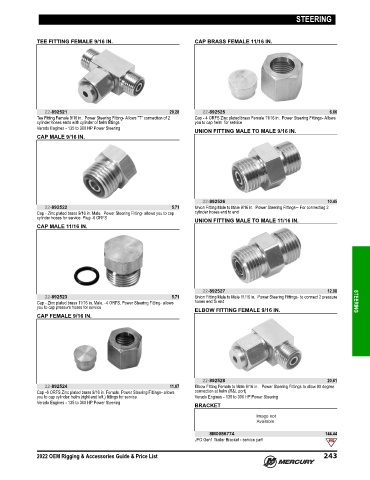

Page 256 - Rigging and Accessories Guide (2022) - 8M0187689

STEERING

TEE FITTING FEMALE 9/16 IN. CAP BRASS FEMALE 11/16 IN.

22-892521 20.28 22-892525 6.66
Tee Fitting Female 9/16 in. Power Steering Fitting‑ Allows "T" connection of 2 Cap ‑ 4 ORFS Zinc plated brass Female 11/16 in. Power Steering Fittings‑ Allows
cylinder hoses ends with cylinder of helm fittings you to cap helm for service
Verado Engines ‑ 135 to 300 HP Power Steering
UNION FITTING MALE TO MALE 9/16 IN.
CAP MALE 9/16 IN.

22-892526 10.45
22-892522 5.71 Union Fitting Male to Male 9/16 in. Power Steering Fittings‑‑ For connecting 2
Cap ‑ Zinc plated brass 9/16 in. Male. Power Steering Fitting‑ allows you to cap cylinder hoses end to end
cylinder hoses for service. Plug ‑6 ORFS
UNION FITTING MALE TO MALE 11/16 IN.
CAP MALE 11/16 IN.

22-892527 12.08
22-892523 5.71 Union Fitting Male to Male 11/16 in. Power Steering Fittings‑ to connect 2 pressure
Cap ‑ Zinc plated brass 11/16 in. Male. ‑4 ORFS. Power Steering Fitting‑ allows hoses end to end STEERING
you to cap pressure hoses for service
ELBOW FITTING FEMALE 9/16 IN.
CAP FEMALE 9/16 IN.

22-892528 20.61
22-892524 11.67 Elbow Fitting Female to Male 9/16 in.. Power Steering Fittings to allow 90 degree
Cap ‑6 ORFS Zinc plated brass 9/16 in. Female. Power Steering Fittings‑ allows connection at helm (R&L port)
you to cap cylinder: helm (right and left ) fittings for service Verado Engines ‑ 135 to 300 HP Power Steering
Verado Engines ‑ 135 to 300 HP Power Steering
BRACKET

8M0086774 144.44
JPO Gen1 Trailer Bracket ‑ service part

2022 OEM Rigging & Accessories Guide & Price List 243
