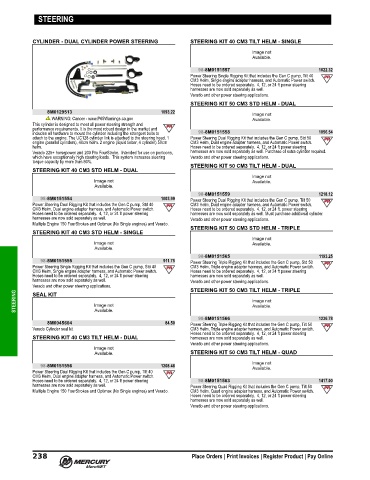

Page 251 - Rigging and Accessories Guide (2022) - 8M0187689

STEERING

CYLINDER - DUAL CYLINDER POWER STEERING STEERING KIT 40 CM3 TILT HELM - SINGLE

98-8M0151557 1022.32
Power Steering Single Rigging Kit that includes the Gen C pump, Tilt 40
CM3 Helm, Single engine adapter harness, and Automatic Power switch.
Hoses need to be ordered separately. 4, 12, or 24 ft power steering
harnesses are now sold separately as well.
Verado and other power steering applications.
STEERING KIT 50 CM3 STD HELM - DUAL
8M0129513 1093.22
WARNING: Cancer - www.P65Warnings.ca.gov
This cylinder is designed to meet all power steering strength and
performance requirements. It is the most robust design in the market and
includes all hardware to mount the cylinder including the strongest bolts to 98-8M0151558 1056.54
attach to the engine. The UC128 cylinder link is attached to the steering head. 1 Power Steering Dual Rigging Kit that includes the Gen C pump, Std 50
engine (parallel cylinders), 40cm helm. 2 engine (liquid tiebar, 4 cylinder) 50cm CM3 Helm, Dual engine adapter harness, and Automatic Power switch.
helm. Hoses need to be ordered separately. 4, 12, or 24 ft power steering
Verado 225+ horsepower and 200 Pro FourStroke. Intended for use on pontoons, harnesses are now sold separately as well. Purchase of extra cylinder required.
which have exceptionally high steering loads. This system increases steering Verado and other power steering applications.
torque capacity by more than 80%.
STEERING KIT 50 CM3 TILT HELM - DUAL
STEERING KIT 40 CM3 STD HELM - DUAL

98-8M0151559 1218.12
98-8M0151554 1003.99 Power Steering Dual Rigging Kit that includes the Gen C pump, Tilt 50
Power Steering Dual Rigging Kit that includes the Gen C pump, Std 40 CM3 Helm, Dual engine adapter harness, and Automatic Power switch.
CM3 Helm, Dual engine adapter harness, and Automatic Power switch. Hoses need to be ordered separately. 4, 12, or 24 ft. power steering
Hoses need to be ordered separately. 4, 12, or 24 ft power steering harnesses are now sold separately as well. Must purchase additional cylinder.
harnesses are now sold separately as well. Verado and other power steering applications.
Multiple Engine 150 FourStrokes and Optimax (No Single engines) and Verado.
STEERING KIT 50 CM3 STD HELM - TRIPLE
STEERING KIT 40 CM3 STD HELM - SINGLE

98-8M0151565 1193.25
98-8M0151555 911.75 Power Steering Triple Rigging Kit that includes the Gen C pump, Std 50
Power Steering Single Rigging Kit that includes the Gen C pump, Std 40 CM3 Helm, Triple engine adapter harness, and Automatic Power switch.
CM3 Helm, Single engine adapter harness, and Automatic Power switch. Hoses need to be ordered separately. 4, 12, or 24 ft power steering
Hoses need to be ordered separately. 4, 12, or 24 ft power steering harnesses are now sold separately as well.
harnesses are now sold separately as well. Verado and other power steering applications.
Verado and other power steering applications. STEERING KIT 50 CM3 TILT HELM - TRIPLE
STEERING SEAL KIT

98-8M0151566 1236.78
8M0045604 84.50 Power Steering Triple Rigging Kit that includes the Gen C pump, Tilt 50
Verado Cylinder seal kit CM3 Helm, Triple engine adapter harness, and Automatic Power switch.
Hoses need to be ordered separately. 4, 12, or 24 ft power steering
STEERING KIT 40 CM3 TILT HELM - DUAL harnesses are now sold separately as well.
Verado and other power steering applications.
STEERING KIT 50 CM3 TILT HELM - QUAD

98-8M0151556 1208.48
Power Steering Dual Rigging Kit that includes the Gen C pump, Tilt 40
CM3 Helm, Dual engine adapter harness, and Automatic Power switch.
Hoses need to be ordered separately. 4, 12, or 24 ft power steering 98-8M0151563 1417.00
harnesses are now sold separately as well. Power Steering Quad Rigging Kit that includes the Gen C pump, Tilt 50
Multiple Engine 150 FourStrokes and Optimax (No Single engines) and Verado. CM3 Helm, Quad engine adapter harness, and Automatic Power switch.
Hoses need to be ordered separately. 4, 12, or 24 ft power steering
harnesses are now sold separately as well.
Verado and other power steering applications.
