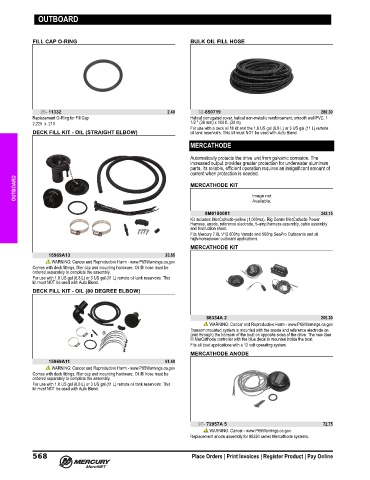

Page 581 - Rigging and Accessories Guide (2022) - 8M0187689

OUTBOARD

FILL CAP O-RING BULK OIL FILL HOSE

25- 11332 2.40 32-850719 280.30
Replacement O‑Ring for Fill Cap Helical corrugated cover, helical non‑metallic reinforcement, smooth wall PVC. 1
2.225 x .210 1/2 " (38 mm) x 100 ft. (30 m)
For use with a deck oil fill kit and the 1.8 US gal (6.8 L) or 3 US gal (11 L) remote
DECK FILL KIT - OIL (STRAIGHT ELBOW) oil tank reservoirs. This kit must NOT be used with Auto Blend.
MERCATHODE

Automatically protects the drive unit from galvanic corrosion. The
increased output provides greater protection for underwater aluminum
parts. Its reliable, efficient operation requires an insignificant amount of
current when protection is needed.
OUTBOARD MERCATHODE KIT

8M0180081 342.15
Kit includes: MerCathode‑yellow (1,000ma), Rig Center MerCathode Power
Harness, anode, reference electrode, 5‑amp harness assembly, cable assembly
and Instruction sheet.
Fits Mercury 7.6L V12 600hp Verado and 500hp SeaPro Outboards and all
high‑horsepower outboard applications.
MERCATHODE KIT
15969A13 33.65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Comes with deck fittings, filler cap and mounting hardware. Oil fill hose must be
ordered separately to complete the assembly.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This
kit must NOT be used with Auto Blend.
DECK FILL KIT - OIL (80 DEGREE ELBOW)

88334A 2 206.30
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Transom mounted system is mounted with the anode and reference electrode on
(and through) the transom of the boat on opposite sides of the drive. The new Gen
III MerCathode controller with the blue decal is mounted inside the boat.
Fits all boat applications with a 12 volt operating system.
MERCATHODE ANODE
15969A11 61.40
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Comes with deck fittings, filler cap and mounting hardware. Oil fill hose must be
ordered separately to complete the assembly.
For use with 1.8 US gal (6.8 L) or 3 US gal (11 L) remote oil tank reservoirs. This
kit must NOT be used with Auto Blend.

97- 72957A 5 72.75
WARNING: Cancer - www.P65Warnings.ca.gov
Replacement anode assembly for 88334 series Mercathode systems.

568 Place Orders | Print Invoices | Register Product | Pay Online
