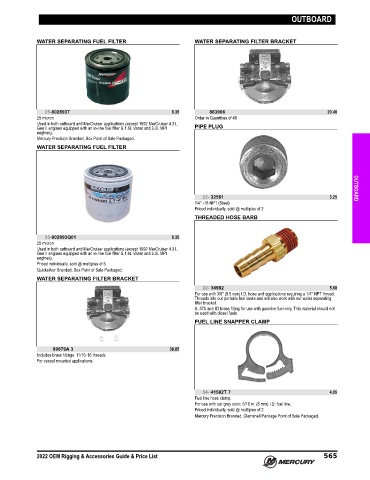

Page 578 - Rigging and Accessories Guide (2022) - 8M0187689

OUTBOARD

WATER SEPARATING FUEL FILTER WATER SEPARATING FILTER BRACKET

35-802893T 8.35 883966 20.40
25 micron Order in Quantities of 48
Used in both outboard and MerCruiser applications (except 1992 MerCruiser 4.3 L
Gen II engines equipped with an in‑line fuel filter & 1.6L Vazer and 3.0L MPI PIPE PLUG
engines).
Mercury Precision Branded, Box Point of Sale Packaged.
WATER SEPARATING FUEL FILTER

22- 32561 3.25 OUTBOARD
1/4" ‑18 NPT (Steel)
Priced individually, sold @ multiples of 2
THREADED HOSE BARB

35-802893Q01 8.35
25 micron
Used in both outboard and MerCruiser applications (except 1992 MerCruiser 4.3 L
Gen II engines equipped with an in‑line fuel filter & 1.6L Vazer and 3.0L MPI
engines).
Priced individually, sold @ multiples of 6
Quicksilver Branded, Box Point of Sale Packaged.
WATER SEPARATING FILTER BRACKET
22- 34982 5.60
For use with 3/8" (9.5 mm) I.D. hose and applications requiring a 1/4" NPT thread.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A .375 inch ID brass fitting for use with gasoline fuel only. This material should not
be used with diesel fuels.
FUEL LINE SNAPPER CLAMP

89876A 3 38.85
Includes brass fittings. 11/16‑16 threads
For vessel mounted applications.

54- 41582T 7 4.05
Fuel line hose clamp.
For use with our gray color, 5/16 in. (8 mm) I.D. fuel line.
Priced individually, sold @ multiples of 2
Mercury Precision Branded, Clamshell Package Point of Sale Packaged.

2022 OEM Rigging & Accessories Guide & Price List 565
