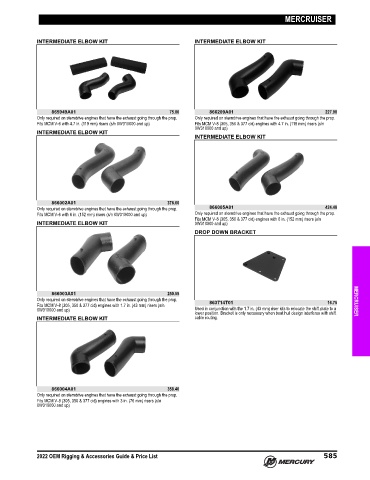

Page 598 - Rigging and Accessories Guide (2022) - 8M0187689

MERCRUISER

INTERMEDIATE ELBOW KIT INTERMEDIATE ELBOW KIT

865949A01 75.00 866209A01 227.90
Only required on sterndrive engines that have the exhaust going through the prop. Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑6 with 4.7 in. (119 mm) risers (s/n 0W310000 and up) Fits MCM V‑8 (305, 350 & 377 cid) engines with 4.7 in. (119 mm) risers (s/n
0W310000 and up)
INTERMEDIATE ELBOW KIT
INTERMEDIATE ELBOW KIT

866002A01 378.60
Only required on sterndrive engines that have the exhaust going through the prop. 866005A01 424.40
Fits MCM V‑6 with 6 in. (152 mm) risers (s/n 0W310000 and up) Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑8 (305, 350 & 377 cid) engines with 6 in. (152 mm) risers (s/n
INTERMEDIATE ELBOW KIT 0W310000 and up)
DROP DOWN BRACKET

866003A01 250.55
Only required on sterndrive engines that have the exhaust going through the prop. MERCRUISER
Fits MCM V‑8 (305, 350 & 377 cid) engines with 1.7 in. (43 mm) risers (s/n 863714T01 16.75
0W310000 and up) Used in conjunction with the 1.7 in. (43 mm) riser kits to relocate the shift plate to a
lower position. Bracket is only necessary when boat hull design interferes with shift
INTERMEDIATE ELBOW KIT cable routing.

866004A01 358.40
Only required on sterndrive engines that have the exhaust going through the prop.
Fits MCM V‑8 (305, 350 & 377 cid) engines with 3 in. (76 mm) risers (s/n
0W310000 and up)

2022 OEM Rigging & Accessories Guide & Price List 585
