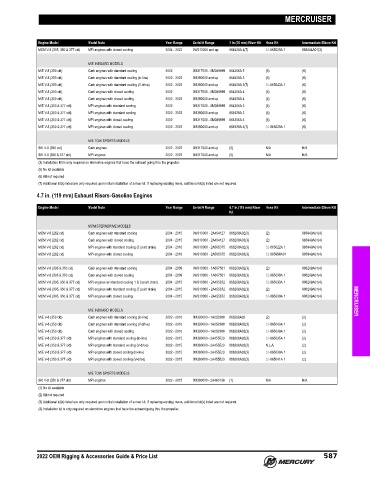

Page 600 - Rigging and Accessories Guide (2022) - 8M0187689

MERCRUISER

Engine Model Model Note Year Range Serial # Range 3 in.(76 mm) Riser Kit Hose Kit Intermediate Elbow Kit
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2004 - 2022 0W310000 and up 864929A 4(7) 32-865029A 1 866004A01(3)

MIE INBOARD MODELS
MIE V-8 (350 cid) Carb engines with standard cooling 2002 0M317000 - 0M389999 864306A 5 (6) (6)
MIE V-8 (350 cid) Carb engines with standard cooling (in-line) 2002 - 2022 0M390000 and up 864929A 3 (6) (6)
MIE V-8 (350 cid) Carb engines with standard cooling (V-drive) 2002 - 2022 0M390000 and up 864929A 3(7) 32-865043A 1 (6)
MIE V-8 (350 cid) Carb engines with closed cooling 2002 0M317000 - 0M389999 864306A 4 (6) (6)
MIE V-8 (350 cid) Carb engines with closed cooling 2002 - 2022 0M390000 and up 864929A 4 (6) (6)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling 2002 0M317000 - 0M389999 864306A 5 (6) (6)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling 2002 - 2022 0M390000 and up 864929A 3 (6) (6)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling 2002 0M317000 - 0M389999 864306A 4 (6) (6)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling 2002 - 2022 0M390000 and up 864929A 4(7) 32-865029A 1 (6)

MIE TOW SPORTS MODELS
SKI V-8 (350 cid) Carb engines 2002 - 2022 0M317000 and up (5) N/A N/A
SKI V-8 (350 & 377 cid) MPI engines 2002 - 2022 0M317000 and up (5) N/A N/A
(3) Installation Kit is only required on sterndrive engines that have the exhaust going thru the propeller.
(5) No kit available
(6) Kit not required
(7) Additional kit(s) listed are only required upon initial installation of a riser kit. If replacing existing risers, additional kit(s) listed are not required.

4.7 in. (119 mm) Exhaust Risers‑Gasoline Engines
Engine Model Model Note Year Range Serial # Range 4.7 in.(119 mm) Riser Hose Kit Intermediate Elbow Kit
Kit

MCM STERNDRIVE MODELS
MCM V-6 (262 cid) Carb engines with standard cooling 2004 - 2015 0W310000 - 2A454127 866208A02(3) (2) 865949A01(4)
MCM V-6 (262 cid) Carb engines with closed cooling 2004 - 2015 0W310000 - 2A454127 866208A03(3) (2) 865949A01(4)
MCM V-6 (262 cid) MPI engines with standard cooling (7 point drain) 2004 - 2016 0W310000 - 2A506375 866208A02(3) 32-865022A 1 865949A01(4)
MCM V-6 (262 cid) MPI engines with closed cooling 2004 - 2016 0W310000 - 2A506375 866208A03(3) 32-865998A01 865949A01(4)

MCM V-8 (305 & 350 cid) Carb engines with standard cooling 2004 - 2009 0W310000 - 1A607561 866208A02(3) (2) 866209A01(4)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2004 - 2009 0W310000 - 1A607561 866208A03(3) 32-865039A 1 866209A01(4)
MCM V-8 (305, 350 & 377 cid) MPI engines w/ standard cooling 1 & 3 point drain) 2004 - 2015 0W310000 - 2A455872 866208A02(3) 32-865033A 1 866209A01(4)
MCM V-8 (305, 350 & 377 cid) MPI engines with standard cooling (7 point drain) 2004 - 2015 0W310000 - 2A455872 866208A02(3) (2) 866209A01(4)
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2004 - 2015 0W310000 - 2A455872 866208A03(3) 32-865039A 1 866209A01(4)
MERCRUISER
MIE INBOARD MODELS
MIE V-8 (350 cid) Carb engines with standard cooling (in-line) 2002 - 2010 0M390000 - 1A092388 866208A02 (2) (2)
MIE V-8 (350 cid) Carb engines with standard cooling (V-drive) 2002 - 2010 0M390000 - 1A092388 866208A02(3) 32-865043A 1 (2)
MIE V-8 (350 cid) Carb engines with closed cooling 2002 - 2010 0M390000 - 1A092388 866208A03(3) 32-865039A 1 (2)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling (in-line) 2002 - 2015 0M390000 - 2A455523 866208A02(3) 32-865035A 1 (2)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling (V-drive) 2002 - 2015 0M390000 - 2A455523 866208A02(3) N.L.A. (2)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling (in-line) 2002 - 2015 0M390000 - 2A455523 866208A03(3) 32-865039A 1 (2)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling (V-drive) 2002 - 2015 0M390000 - 2A455523 866208A03(3) 32-865041A 1 (2)

MIE TOW SPORTS MODELS
SKI V-8 (350 & 377 cid) MPI engines 2002 - 2015 0M390000 - 2A460138 (1) N/A N/A
(1) No kit available
(2) Kit not required
(3) Additional kit(s) listed are only required upon initial installation of a riser kit. If replacing existing risers, additional kit(s) listed are not required.
(4) Installation kit is only required on sterndrive engines that have the exhaust going thru the propeller.

2022 OEM Rigging & Accessories Guide & Price List 587
