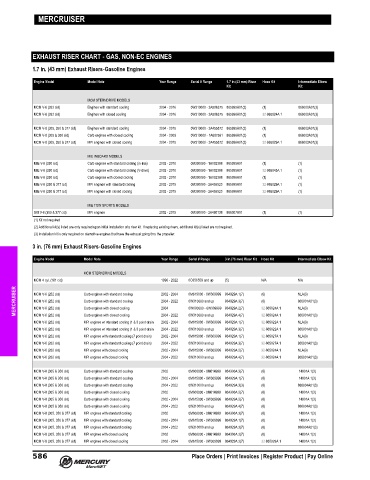

Page 599 - Rigging and Accessories Guide (2022) - 8M0187689

MERCRUISER

EXHAUST RISER CHART - GAS, NON-EC ENGINES

1.7 in. (43 mm) Exhaust Risers‑Gasoline Engines
Engine Model Model Note Year Range Serial # Range 1.7 in.(43 mm) Riser Hose Kit Intermediate Elbow
Kit Kit

MCM STERNDRIVE MODELS
MCM V-6 (262 cid) Engines with standard cooling 2004 - 2016 0W310000 - 2A506375 865995A01(2) (1) 866000A01(3)
MCM V-6 (262 cid) Engines with closed cooling 2004 - 2016 0W310000 - 2A506375 865996A01(2) 32-865024A 1 866000A01(3)

MCM V-8 (305, 350 & 377 cid) Engines with standard cooling 2004 - 2015 0W310000 - 2A455872 865995A01(2) (1) 866003A01(3)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2004 - 2009 0W310000 - 1A607561 865996A01(2) (1) 866003A01(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2004 - 2015 0W310000 - 2A455872 865996A01(2) 32-865029A 1 866003A01(3)

MIE INBOARD MODELS
MIE V-8 (350 cid) Carb engines with standard cooling (in-line) 2002 - 2010 0M390000 - 1A092388 865995A01 (1) (1)
MIE V-8 (350 cid) Carb engines with standard cooling (V-drive) 2002 - 2010 0M390000 - 1A092388 865995A01 32-865043A 1 (1)
MIE V-8 (350 cid) Carb engines with closed cooling 2002 - 2010 0M390000 - 1A092388 865996A01 (1) (1)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling 2002 - 2015 0M390000 - 2A455523 865995A01 32-865029A 1 (1)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling 2002 - 2015 0M390000 - 2A455523 865996A01 32-865029A 1 (1)

MIE TOW SPORTS MODELS
SKI V-8 (350 & 377 cid) MPI engines 2002 - 2015 0M390000 - 2A460138 866007A01 (1) (1)
(1) Kit not required
(2) Additional kit(s) listed are only required upon initial installation of a riser kit. If replacing existing risers, additional kit(s) listed are not required.
(3) Installation kit is only required on sterndrive engines that have the exhaust going thru the propeller.
3 in. (76 mm) Exhaust Risers‑Gasoline Engines

Engine Model Model Note Year Range Serial # Range 3 in.(76 mm) Riser Kit Hose Kit Intermediate Elbow Kit

MCM STERNDRIVE MODELS
MCM 4 cyl. (181 cid) 1990 - 2022 0C856559 and up (5) N/A N/A

MERCRUISER MCM V-6 (262 cid) Carb engines with standard cooling 2002 - 2004 0M615000 - 0W309999 864929A 1(7) (6) NLA(3)
(6)
864929A 3(7)
Carb engines with standard cooling
2004 - 2022
MCM V-6 (262 cid)
866001A01(3)
0W310000 and up
0W000000 - 0W309999 864929A 2(7)
2004
MCM V-6 (262 cid)
NLA(3)
Carb engines with closed cooling
32-865024A 1
MCM V-6 (262 cid)
MPI engines w/ standard cooling (1 & 3 point drain
32-865022A 1
MCM V-6 (262 cid) Carb engines with closed cooling 2004 - 2022 0W310000 and up 864929A 4(7) 32-865024A 1 866001A01(3)
NLA(3)
2002 - 2004
0M615000 - 0W309999 864929A 1(7)
MCM V-6 (262 cid) MPI engines w/ standard cooling (1 & 3 point drain 2004 - 2022 0W310000 and up 864929A 3(7) 32-865022A 1 866001A01(3)
MCM V-6 (262 cid) MPI engines with standard cooling (7 point drain) 2002 - 2004 0M615000 - 0W309999 864929A 1(7) 32-865027A 1 NLA(3)
MCM V-6 (262 cid) MPI engines with standard cooling (7 point drain) 2004 - 2022 0W310000 and up 864929A 3(7) 32-865027A 1 866001A01(3)
MCM V-6 (262 cid) MPI engines with closed cooling 2002 - 2004 0M615000 - 0W309999 864929A 2(7) 32-865024A 1 NLA(3)
MCM V-6 (262 cid) MPI engines with closed cooling 2004 - 2022 0W310000 and up 864929A 4(7) 32-865024A 1 866001A01(3)

MCM V-8 (305 & 350 cid) Carb engines with standard cooling 2002 0M600000 - 0M614999 864306A 3(7) (6) 14801A 1(3)
MCM V-8 (305 & 350 cid) Carb engines with standard cooling 2002 - 2004 0M615000 - 0W309999 864929A 1(7) (6) 14801A 1(3)
MCM V-8 (305 & 350 cid) Carb engines with standard cooling 2004 - 2022 0W310000 and up 864929A 3(3) (6) 866004A01(3)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2002 0M600000 - 0M614999 864306A 2(7) (6) 14801A 1(3)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2002 - 2004 0M615000 - 0W309999 864929A 2(7) (6) 14801A 1(3)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2004 - 2022 0W310000 and up 864929A 4(7) (6) 866004A01(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with standard cooling 2002 0M600000 - 0M614999 864306A 3(7) (6) 14801A 1(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with standard cooling 2002 - 2004 0M615000 - 0W309999 864929A 1(7) (6) 14801A 1(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with standard cooling 2004 - 2022 0W310000 and up 864929A 3(7) (6) 866004A01(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2002 0M600000 - 0M614999 864306A 2(7) (6) 14801A 1(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2002 - 2004 0M615000 - 0W309999 864929A 2(7) 32-865029A 1 14801A 1(3)
