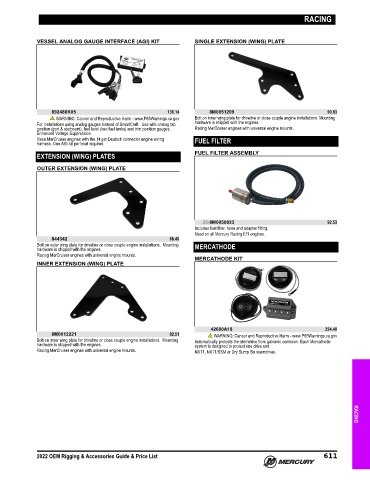

Page 624 - Rigging and Accessories Guide (2022) - 8M0187689

RACING

VESSEL ANALOG GAUGE INTERFACE (AGI) KIT SINGLE EXTENSION (WING) PLATE

892486K05 136.14 8M0051209 90.83
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Bolt on inner wing plate for driveline or close couple engine installations. Mounting
For installations using analog gauges instead of SmartCraft. Use with analog tab hardware is shipped with the engines.
position (port & starboard), fuel level (two fuel tanks) and trim position gauges. Racing MerCruiser engines with universal engine mounts.
Enhanced Voltage Suppression.
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring FUEL FILTER
harness. One AGI kit per boat required.
EXTENSION (WING) PLATES FUEL FILTER ASSEMBLY

OUTER EXTENSION (WING) PLATE

35-8M0050833 92.53
Includes fuel filter, hose and adapter fitting.
Used on all Mercury Racing EFI engines.
844342 68.40
Bolt on outer wing plate for driveline or close couple engine installations. Mounting MERCATHODE
hardware is shipped with the engines.
Racing MerCruiser engines with universal engine mounts.
MERCATHODE KIT
INNER EXTENSION (WING) PLATE

42600A18 224.40
8M0012221 82.51 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Bolt on inner wing plate for driveline or close couple engine installations. Mounting Automatically protects the sterndrive from galvanic corrosion. Each Mercathode
hardware is shipped with the engines. system is designed to protect one drive unit.
Racing MerCruiser engines with universal engine mounts. NXT1, NXT1/SSM or Dry Sump Six sterndrives.

2022 OEM Rigging & Accessories Guide & Price List 611 RACING
