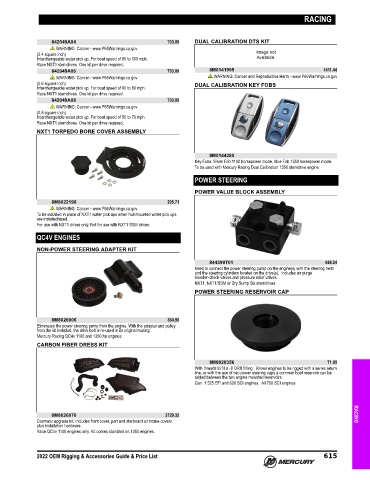

Page 628 - Rigging and Accessories Guide (2022) - 8M0187689

RACING

842049A04 703.09 DUAL CALIBRATION DTS KIT
WARNING: Cancer - www.P65Warnings.ca.gov
(0.4 square inch)
Interchangeable water pick up. For boat speed of 80 to 100 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A06 703.09 8M0141995 1411.44
WARNING: Cancer - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(0.6 square inch) DUAL CALIBRATION KEY FOBS
Interchangeable water pick up. For boat speed of 60 to 80 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A08 703.09
WARNING: Cancer - www.P65Warnings.ca.gov
(0.8 square inch)
Interchangeable water pick up. For boat speed of 50 to 70 mph.
Race NXT1 sterndrives. One kit per drive required.
NXT1 TORPEDO BORE COVER ASSEMBLY

8M0144280
Key Fobs. Silver Fob 1100 horsepower mode, blue Fob 1350 horsepower mode.
To be used with Mercury Racing Dual Calibration 1350 sterndrive engine.
POWER STEERING

POWER VALUE BLOCK ASSEMBLY
8M8022198 205.71
WARNING: Cancer - www.P65Warnings.ca.gov
To be installed in place of NXT1 water pick ups when hull mounted water pick ups
are installed/used.
For use with NXT1 drives only. Not for use with NXT1 SSM drives.
QC4V ENGINES

NON-POWER STEERING ADAPTER KIT

844399T01 688.24
Used to connect the power steering pump on the engine(s) with the steering helm
and the steering cylinders located on the drive(s). Includes air purge
bleeder‑check valves and pressure relief valves.
NXT1, NXT1/SSM or Dry Sump Six sterndrives.
POWER STEERING RESERVOIR CAP

8M8026006 384.90
Eliminates the power steering pump from the engine. With the adapter and pulley
from the kit installed, the drive belt is re‑used in its original routing.
Mercury Racing QC4v 1100 and 1350 hp engines.
CARBON FIBER DRESS KIT

8M8020356 71.95
With threads to fit a ‑8 ORB fitting. Allows engines to be rigged with a series return
line, or with the use of two power steering caps a common boat reservoir can be
added between the two engine mounted reservoirs.
Gen. 1 525 EFI and 600 SCI engines. All 700 SCI engines.

8M8026070 3729.32 RACING
Cosmetic upgrade kit. Includes front cover, port and starboard air intake covers
plus installation hardware.
Race QC4v 1100 engines only. Kit comes standard on 1350 engines.
