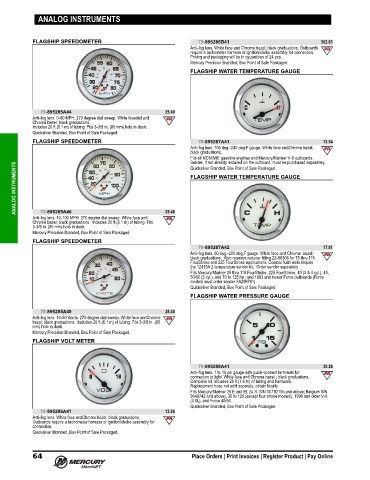

Page 77 - Rigging and Accessories Guide (2022) - 8M0187689

ANALOG INSTRUMENTS

FLAGSHIP SPEEDOMETER 79-895286B41 302.03
Anti‑fog lens. White face and Chrome bezel; black graduations. Outboards
require a tachometer harness or ignition/choke assembly for connection.
Pricing and packaging will be in qyuantities of 24 pcs.
Mercury Precision Branded, Box Point of Sale Packaged.
FLAGSHIP WATER TEMPERATURE GAUGE

79-895285A44 25.40
Anti‑fog lens. 0‑80 MPH. 270 degree dial sweep. White facedial and
Chrome bezel; black graduations.
Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 in. (85 mm) hole in dash.
Quicksilver Branded, Box Point of Sale Packaged.
FLAGSHIP SPEEDOMETER 79-895287A41 13.54
Anti‑fog lens. 100 deg.‑240 deg.F gauge. White face andChrome bezel;
black graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner V‑6 outboards.
Sender, if not already installed on the outboard, must be purchased separately.
ANALOG INSTRUMENTS FLAGSHIP WATER TEMPERATURE GAUGE
Quicksilver Branded, Box Point of Sale Packaged.

79-895285A46
Anti‑fog lens. 10‑100 MPH. 270 degree dial sweep. White face and 25.40
Chrome bezel; black graduations. Includes 20 ft.(6.1 m) of tubing. Fits
3‑3/8 in. (85 mm) hole in dash.
Mercury Precision Branded, Box Point of Sale Packaged.
FLAGSHIP SPEEDOMETER
79-895287A42 17.61
Anti‑fog lens. 60 deg.‑200 deg.F gauge. White face and Chrome bezel;
black graduations. Also requires reducer fitting 22‑86306 for 75 thru 115
FourStroke and 225 FourStroke applications. Coastal flush units require
the 12415A 2 temperature sender kit. Order sender seperately
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791)
Quicksilver Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895285A48 25.40
Anti‑fog lens. 10‑50 Knots. 270 degree dial sweep. White face andChrome
bezel; black graduations. Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 in. (85
mm) hole in dash.
Mercury Precision Branded, Box Point of Sale Packaged.
FLAGSHIP VOLT METER

79-895288A41 35.26
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. White face and Chrome bezel ; black graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Quicksilver Branded, Box Point of Sale Packaged.
79-895286A41 12.26
Anti‑fog lens. White face andChrome bezel; black graduations.
Outboards require a tachometer harness or ignition/choke assembly for
connection.
Quicksilver Branded, Box Point of Sale Packaged.
