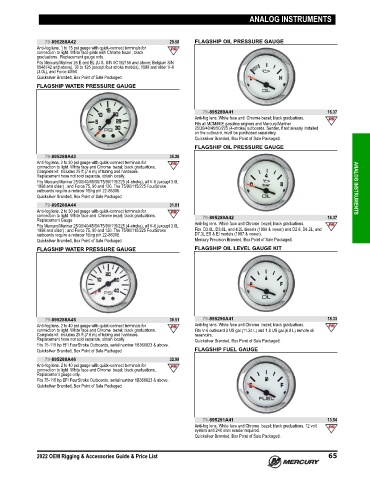

Page 78 - Rigging and Accessories Guide (2022) - 8M0187689

ANALOG INSTRUMENTS

79-895288A42 29.56 FLAGSHIP OIL PRESSURE GAUGE
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. White face plate with Chrome bezel ; black
graduations. Replacement gauge only.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
(3.0L), and Force 40/50.
Quicksilver Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE

79-895289A41 16.37
Anti‑fog lens. White face and Chrome bezel; black graduations.
Fits all MCM/MIE gasoline engines and Mercury/Mariner
25/30/40/45/50/225 (4‑stroke) outboards. Sender, if not already installed
on the outboard, must be purchased separately.
Quicksilver Branded, Box Point of Sale Packaged.
FLAGSHIP OIL PRESSURE GAUGE
79-895288A43 35.26
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. White face and Chrome bezel; black graduations.
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke ANALOG INSTRUMENTS
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288A44 31.61
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. White face and Chrome bezel; black graduations. 79-895289A42 16.37
Replacement Gauge
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L Anti‑fog lens. White face and Chrome bezel; black graduations.
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke Fits D3.0L, D3.6L, and 4.2L diesels (1994 & newer) and D2.8, D4.2L, and
outboards require a reducer fitting p/n 22‑86306. D7.3L ES & EI models (1997 & newer).
Quicksilver Branded, Box Point of Sale Packaged. Mercury Precision Branded, Box Point of Sale Packaged.
FLAGSHIP WATER PRESSURE GAUGE FLAGSHIP OIL LEVEL GAUGE KIT

79-895288A45 36.51 79-895290A41 18.33
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for Anti‑fog lens. White face and Chrome bezel; black graduations.
connection to light. White face and Chrome bezel; black graduations. Fits V‑6 outboard 3 US gal.(11.34 L) and 1.8 US gal.(6.8 L) remote oil
Complete kit. Includes 25 ft.(7.6 m) of tubing and hardware. reservoirs.
Replacement hose not sold separate, obtain locally. Quicksilver Branded, Box Point of Sale Packaged.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged. FLAGSHIP FUEL GAUGE
79-895288A46 32.99
Anti‑fog lens. 2 to 40 psi gauge with quick‑connect terminals for
connection to light. White face and Chrome bezel; black graduations..
Replacement gauge only.
Fits 75‑115 hp EFI FourStroke Outboards, serial number 1B366823 & above.
Quicksilver Branded, Box Point of Sale Packaged.

79-895291A41 13.54
Anti‑fog lens. White face and Chrome bezel; black graduations. 12 volt
system and 240 ohm sender required.
Quicksilver Branded, Box Point of Sale Packaged.

2022 OEM Rigging & Accessories Guide & Price List 65
