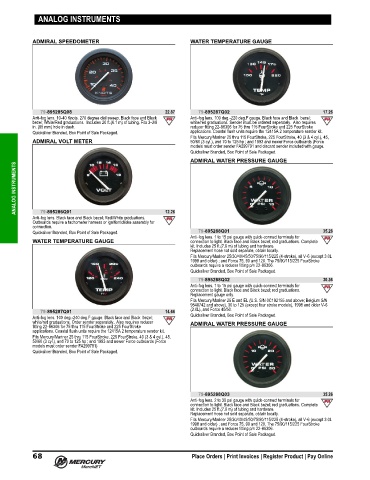

Page 81 - Rigging and Accessories Guide (2022) - 8M0187689

ANALOG INSTRUMENTS

ADMIRAL SPEEDOMETER WATER TEMPERATURE GAUGE

79-895285Q08 22.87 79-895287Q02 17.26
Anti‑fog lens. 10‑40 Knots. 270 degree dial sweep. Black face and Black Anti‑fog lens. 100 deg.‑220 deg.F gauge. Black face and Black bezel;
bezel; White/Red graduations. Includes 20 ft.(6.1 m) of tubing. Fits 3‑3/8 white/red graduations. Sender must be ordered seperately. Also requires
in. (85 mm) hole in dash. reducer fitting 22‑86306 for 75 thru 115 FourStroke and 225 FourStroke
Quicksilver Branded, Box Point of Sale Packaged. applications. Coastal flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
ADMIRAL VOLT METER 50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791 and discard sender included with gauge.
Quicksilver Branded, Box Point of Sale Packaged.
ADMIRAL WATER PRESSURE GAUGE
ANALOG INSTRUMENTS

79-895286Q01
Anti‑fog lens. Black face and Black bezel; Red/White graduations. 12.26
Outboards require a tachometer harness or ignition/choke assembly for
connection.
Quicksilver Branded, Box Point of Sale Packaged. 79-895288Q01 35.26
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
WATER TEMPERATURE GAUGE connection to light. Black face and Black bezel; red graduations. Complete
kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
79-895288Q02 30.36
Anti‑fog lens. 1 to 15 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations.
Replacement gauge only.
Fits Mercury/Mariner 25 E and EL (U.S. S/N 0C192155 and above; Belgium S/N
9548742 and above), 30 to 125 (except four stroke models), 1998 and older V‑6
79-895287Q01 14.66 (3.0L), and Force 40/50.
Anti‑fog lens. 100 deg.‑240 deg.F gauge. Black face and Black bezel; Quicksilver Branded, Box Point of Sale Packaged.
white/red graduations. Order sender seperately.. Also requires reducer ADMIRAL WATER PRESSURE GAUGE
fitting 22‑86306 for 75 thru 115 FourStroke and 225 FourStroke
applications. Coastal flush units require the 12415A 2 temperature sender kit.
Fits Mercury/Mariner 25 thru 115 FourStroke, 225 FourStroke, 40 (3 & 4 cyl.), 45,
50/60 (3 cyl.), and 70 to 125 hp ; and 1993 and newer Force outboards (Force
models must order sender FA299791)
Quicksilver Branded, Box Point of Sale Packaged.

79-895288Q03 35.26
Anti‑fog lens. 2 to 30 psi gauge with quick‑connect terminals for
connection to light. Black face and Black bezel; red graduations. Complete
kit. Includes 25 ft.(7.6 m) of tubing and hardware.
Replacement hose not sold separate, obtain locally.
Fits Mercury/Mariner 25/30/40/45/50/75/90/115/225 (4‑stroke), all V‑6 (except 3.0L
1998 and older) ; and Force 75, 90 and 120. The 75/90/115/225 FourStroke
outboards require a reducer fitting p/n 22‑86306.
Quicksilver Branded, Box Point of Sale Packaged.
