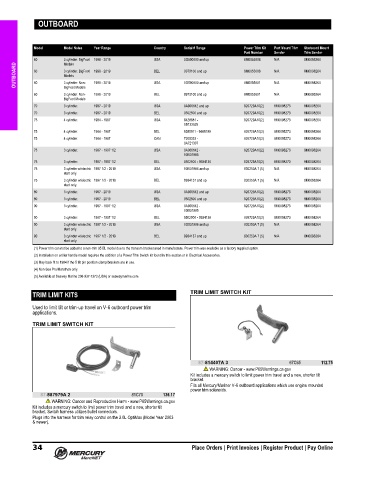

Page 47 - US ACCESSORIES GUIDE (2019)
P. 47
OUTBOARD
Model Model Notes Year Range Country Serial # Range Power Trim Kit Port Mount Trim Starboard Mount
Part Number Sender Trim Sender
60 3 cylinder. BigFoot 1998 - 2019 USA 0G590000 and up 8M0055008 N/A 8M0098264
Models
OUTBOARD 60 3 cylinder. BigFoot 1998 - 2019 BEL 9973100 and up 8M0055008 N/A 8M0098264
Models
8M0098264
60
3 cylinder. Non-
N/A
1998 - 2019
USA
0G590000 and up
8M0055001
3 cylinder. Non-
60 BigFoot Models 1998 - 2019 BEL 9973100 and up 8M0055001 N/A 8M0098264
BigFoot Models
70 3 cylinder. 1987 - 2019 USA 0A966142 and up 826729A10(2) 8M0098273 8M0098264
70 3 cylinder. 1987 - 2019 BEL 9502500 and up 826729A10(2) 8M0098273 8M0098264
75 4 cylinder. 1984 - 1987 USA 6428681 - 826729A10(2) 8M0098273 8M0098264
0B122929
75 4 cylinder. 1984 - 1987 BEL 9385911 - 9469199 826729A10(2) 8M0098273 8M0098264
75 4 cylinder. 1984 - 1987 CAN 7208333 - 826729A10(2) 8M0098273 8M0098264
0A721307
75 3 cylinder. 1987 - 1997 1/2 USA 0A966142 - 826729A10(2) 8M0098273 8M0098264
0G531985
75 3 cylinder. 1987 - 1997 1/2 BEL 9502500 - 9934136 826729A10(2) 8M0098273 8M0098264
75 3 cylinder w/electric 1997 1/2 - 2019 USA 0G531986 and up 830250A 7 (5) N/A 8M0098264
start only.
75 3 cylinder w/electric 1997 1/2 - 2019 BEL 9934137 and up 830250A 7 (5) N/A 8M0098264
start only.
80 3 cylinder. 1987 - 2019 USA 0A966142 and up 826729A10(2) 8M0098273 8M0098264
80 3 cylinder. 1987 - 2019 BEL 9502500 and up 826729A10(2) 8M0098273 8M0098264
90 3 cylinder. 1987 - 1997 1/2 USA 0A966142 - 826729A10(2) 8M0098273 8M0098264
0G531985
90 3 cylinder. 1987 - 1997 1/2 BEL 9502500 - 9934136 826729A10(2) 8M0098273 8M0098264
90 3 cylinder w/electric 1997 1/2 - 2019 USA 0G531986 and up 830250A 7 (5) N/A 8M0098264
start only.
90 3 cylinder w/electric 1997 1/2 - 2019 BEL 9934137 and up 830250A 7 (5) N/A 8M0098264
start only.
(1) Power trim can not be added to a non-trim 35 EL model due to the transom bracket used in manufacture. Power trim was available as a factory supplied option.
(2) Installation on a tiller handle model requires the addition of a Power Trim Switch kit found in this section or in Electrical Accessories.
(3) May back fit to 1984 if the 5 tilt pin position clamp brackets are in use.
(4) Non-Sea Pro/Marathon only.
(5) Available at Seaway Marine 206-937-7373 (USA) or seawaymarine.com
TRIM LIMIT KITS TRIM LIMIT SWITCH KIT
Used to limit tilt or trim‑up travel on V‑6 outboard power trim
applications.
TRIM LIMIT SWITCH KIT
87-814407A 3 67C65 112.75
WARNING: Cancer - www.P65Warnings.ca.gov
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket.
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted
power trim solenoids.
87-887979A 2 81C70 136.17
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt
bracket. Switch harness utilizes bullet connectors.
Plugs into the harness for trim relay control on the 3.0L OptiMax (Model Year 2003
& newer).
