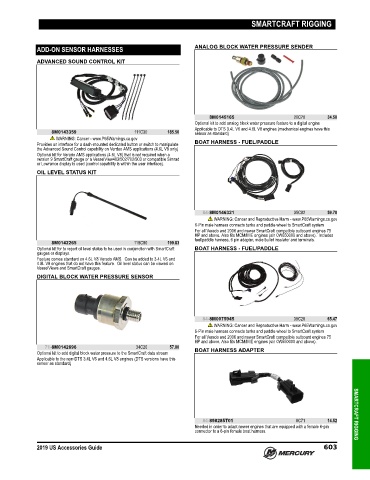

Page 616 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

ADD-ON SENSOR HARNESSES ANALOG BLOCK WATER PRESSURE SENDER

ADVANCED SOUND CONTROL KIT

8M0145165 20C70 34.50
Optional kit to add analog block water pressure feature to a digital engine
Applicable to DTS 3.4L V6 and 4.6L V8 engines (mechanical engines have this
8M0143359 111C30 185.50 sensor as standard)
WARNING: Cancer - www.P65Warnings.ca.gov
Provides an interface for a dash‑mounted dedicated button or switch to manipulate BOAT HARNESS - FUEL/PADDLE
the Advanced Sound Control capability on Verdao AMS applications (4.6L V8 only)
Optional kit for Verado AMS applications (4.6L V8) that is not required when a
version 9 SmartCraft gauge or a VesselView403/502/702/903 or compatible Simrad
or Lowrance display is used (control capability is within the user interface).
OIL LEVEL STATUS KIT

84-8M0146321 35C82 59.70
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
6‑Pin male harness connects tanks and paddle wheel to SmartCraft system
For all Verado and 2006 and newer SmartCraft compatible outboard engines 75
HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above). Includes
fuel/paddle harness, 6 pin adapter, male bullet insulator and terminals.
8M0142265 119C90 199.83
Optional kit for to report oil level status to be used in conjunction with SmartCraft BOAT HARNESS - FUEL/PADDLE
gauges or displays.
Feature comes standard on 4.6L V8 Verado AMS. Can be added to 3.4L V6 and
4.8L V8 engines that do not have this feature. Oil level status can be viewed on
VesselViews and SmartCraft gauges.
DIGITAL BLOCK WATER PRESSURE SENSOR

84-8M0075945 39C28 65.47
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
6‑Pin male harness connects tanks and paddle wheel to SmartCraft system
For all Verado and 2006 and newer SmartCraft compatible outboard engines 75
HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above).
71-8M0142696 34C20 57.00
Optional kit to add digital block water pressure to the SmartCraft data stream BOAT HARNESS ADAPTER
Applicable to the non‑DTS 3.4L V6 and 4.6L V8 engines (DTS versions have this
sensor as standard)

84-898285T01 8C71 14.52 SMARTCRAFT RIGGING
Needed in order to adapt newer engines that are equipped with a female 6‑pin
connector to a 6‑pin female boat harness.

2019 US Accessories Guide 603
