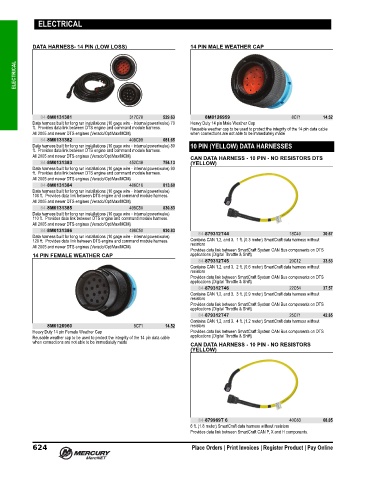

Page 637 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

DATA HARNESS- 14 PIN (LOW LOSS) 14 PIN MALE WEATHER CAP

ELECTRICAL

84-8M0131381 317C78 529.63 8M0126959 8C71 14.52
Data harness built for long run installations (10 gage wire ‑ internal power/wake) 70 Heavy Duty 14 pin Male Weather Cap
ft. Provides data link between DTS engine and command module harness. Reusable weather cap to be used to protect the integrity of the 14 pin data cable
All 2005 and newer DTS engines (Verado/OptiMax/MCM) when connections are not able to be immediately made
84-8M0131382 408C99 681.65
Data harness built for long run installations (10 gage wire ‑ internal power/wake) 80 10 PIN (YELLOW) DATA HARNESSES
ft. Provides data link between DTS engine and command module harness.
All 2005 and newer DTS engines (Verado/OptiMax/MCM) CAN DATA HARNESS - 10 PIN - NO RESISTORS DTS
84-8M0131383 452C48 754.13 (YELLOW)
Data harness built for long run installations (10 gage wire ‑ internal power/wake) 90
ft. Provides data link between DTS engine and command module harness.
All 2005 and newer DTS engines (Verado/OptiMax/MCM)
84-8M0131384 488C16 813.60
Data harness built for long run installations (10 gage wire ‑ internal power/wake)
100 ft. Provides data link between DTS engine and command module harness.
All 2005 and newer DTS engines (Verado/OptiMax/MCM)
84-8M0131385 498C50 830.83
Data harness built for long run installations (10 gage wire ‑ internal power/wake)
110 ft. Provides data link between DTS engine and command module harness.
All 2005 and newer DTS engines (Verado/OptiMax/MCM)
84-8M0131386 498C50 830.83
Data harness built for long run installations (10 gage wire ‑ internal power/wake) 84-879312T44 18C40 30.67
120 ft. Provides data link between DTS engine and command module harness. Contains CAN 1,2, and 3. 1 ft. (0.3 meter) SmartCraft data harness without
resistors
All 2005 and newer DTS engines (Verado/OptiMax/MCM)
Provides data link between SmartCraft System CAN Bus components on DTS
14 PIN FEMALE WEATHER CAP applications (Digital Throttle & Shift)
84-879312T45 20C12 33.53
Contains CAN 1,2, and 3. 2 ft. (0.6 meter) SmartCraft data harness without
resistors
Provides data link between SmartCraft System CAN Bus components on DTS
applications (Digital Throttle & Shift)
84-879312T46 22C54 37.57
Contains CAN 1,2, and 3. 3 ft. (0.9 meter) SmartCraft data harness without
resistors
Provides data link between SmartCraft System CAN Bus components on DTS
applications (Digital Throttle & Shift)
84-879312T47 25C71 42.85
Contains CAN 1,2, and 3. 4 ft. (1.2 meter) SmartCraft data harness without
8M0126960 8C71 14.52 resistors
Heavy Duty 14 pin Female Weather Cap Provides data link between SmartCraft System CAN Bus components on DTS
Reusable weather cap to be used to protect the integrity of the 14 pin data cable applications (Digital Throttle & Shift)
when connections are not able to be immediately made
CAN DATA HARNESS - 10 PIN - NO RESISTORS
(YELLOW)

84-879969T 6 40C83 68.05
6 ft. (1.8 meter) SmartCraft data harness without resistors
Provides data link between SmartCraft CAN P, X and H components.
