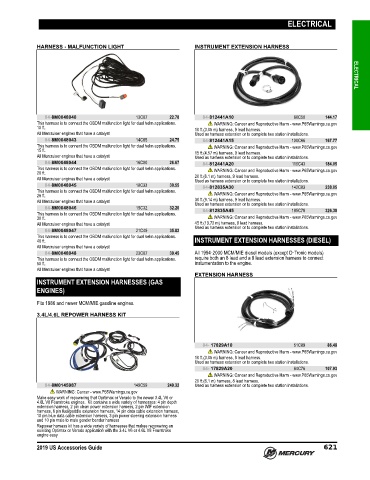

Page 634 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

HARNESS - MALFUNCTION LIGHT INSTRUMENT EXTENSION HARNESS ELECTRICAL

84-8M0048040 13C67 22.78 84-812441A10 86C50 144.17
This harness is to connect the OBDM malfunction light for dual helm applications. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
10 ft. 10 ft.(3.05 m) harness, 9 lead harness.
All Mercruiser engines that have a catalyst Used as harness extension or to complete two station installations.
84-8M0048043 14C85 24.75 84-812441A15 100C66 167.77
This harness is to connect the OBDM malfunction light for dual helm applications. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
15 ft. 15 ft.(4.57 m) harness, 9 lead harness.
All Mercruiser engines that have a catalyst Used as harness extension or to complete two station installations.
84-8M0048044 16C00 26.67 84-812441A20 110C43 184.05
This harness is to connect the OBDM malfunction light for dual helm applications. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
20 ft.
All Mercruiser engines that have a catalyst 20 ft.(6.1 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.
84-8M0048045 18C33 30.55 84-812835A30 142C83 238.05
This harness is to connect the OBDM malfunction light for dual helm applications.
25 ft. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
All Mercruiser engines that have a catalyst 30 ft.(9.14 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.
84-8M0048046 19C32 32.20 84-812835A45 195C78 326.30
This harness is to connect the OBDM malfunction light for dual helm applications.
30 ft. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
All Mercruiser engines that have a catalyst 45 ft.(13.72 m) harness, 9 lead harness.
84-8M0048047 21C49 35.82 Used as harness extension or to complete two station installations.
This harness is to connect the OBDM malfunction light for dual helm applications.
40 ft. INSTRUMENT EXTENSION HARNESSES (DIESEL)
All Mercruiser engines that have a catalyst
84-8M0048048 23C67 39.45 All 1994‑2000 MCM/MIE diesel models (except D‑Tronic models)
This harness is to connect the OBDM malfunction light for dual helm applications. require both an 8 lead and a 9 lead extension harness to connect
50 ft. instumentation to the engine.
All Mercruiser engines that have a catalyst
EXTENSION HARNESS
INSTRUMENT EXTENSION HARNESSES (GAS
ENGINES)

Fits 1986 and newer MCM/MIE gasoline engines.
3.4L/4.6L REPOWER HARNESS KIT

84- 17829A10 51C89 86.48
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
10 ft.(3.05 m) harness, 8 lead harness.
Used as harness extension or to complete two station installations.
84- 17829A20 64C76 107.93
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
20 ft.(6.1 m) harness, 8 lead harness.
84-8M0145987 149C59 249.32 Used as harness extension or to complete two station installations.
WARNING: Cancer - www.P65Warnings.ca.gov
Make easy work of repowering that Oprtimax or Verado to the newer 3.4L V6 or
4.6L V8 Fourstroke engines. Kit contains a wide variety of harnesses: 4 pin depth
extension harness, 2 pin clean power extension harness, 2 pin WIF extension
harness, 6 pin fuel/paddle extension harness, 14 pin data cable extension harness,
10 pin blue data cable extension harness, 3 pin power steering extension harness
and 10 pin male to male gender bender harness
Repower harness kit has a wide variety of harnesses that makes repowering an
exisiting Optimax or Verado application with the 3.4L V6 or 4.6L V8 Fourstroke
engine easy
2019 US Accessories Guide 621
