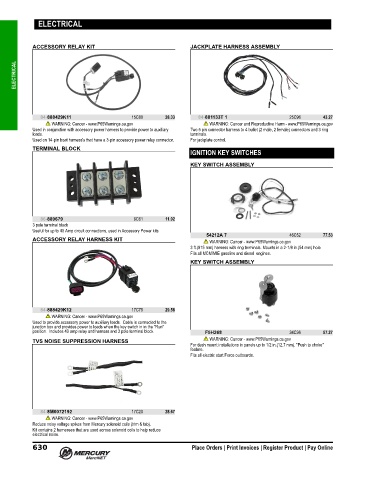

Page 643 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

ACCESSORY RELAY KIT JACKPLATE HARNESS ASSEMBLY

ELECTRICAL

84-888429K11 15C80 26.33 84-881133T 1 25C96 43.27
WARNING: Cancer - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Used in conjunction with accessory power harness to provide power to auxiliary Two 5 pin connector harness to 4 bullet (2 male, 2 female) connectors and 3 ring
loads. terminals.
Used on 14‑pin boat harness's that have a 3‑pin accessory power relay connector. For jackplate control.
TERMINAL BLOCK
IGNITION KEY SWITCHES
KEY SWITCH ASSEMBLY

86-889679 6C61 11.02
3 pole terminal block
Useful for up to 40 Amp circuit connections, used in Accessory Power kits
54212A 7 46C52 77.53
ACCESSORY RELAY HARNESS KIT WARNING: Cancer - www.P65Warnings.ca.gov
3 ft.(915 mm) harness with ring terminals. Mounts in a 2‑1/8 in.(54 mm) hole
Fits all MCM/MIE gasoline and diesel engines.
KEY SWITCH ASSEMBLY

84-888429K12 17C75 29.58
WARNING: Cancer - www.P65Warnings.ca.gov
Used to provide accessory power to auxiliary loads. Cable is connected to the
junction box and provides power to loads when the key switch in in the "Run"
position. Includes 40 amp relay and harness and 3 pole terminal block. F5H268 34C36 57.27
TVS NOISE SUPPRESSION HARNESS WARNING: Cancer - www.P65Warnings.ca.gov
For dash mount installations in panels up to 1/2 in.(12.7 mm). "Push to choke"
feature.
Fits all electric start Force outboards.

84-8M0072192 17C20 28.67
WARNING: Cancer - www.P65Warnings.ca.gov
Reduce noisy voltage spikes from Mercury solenoid coils (trim & tab).
Kit contains 2 harnesses that are used across solenoid coils to help reduce
electrical noise.
