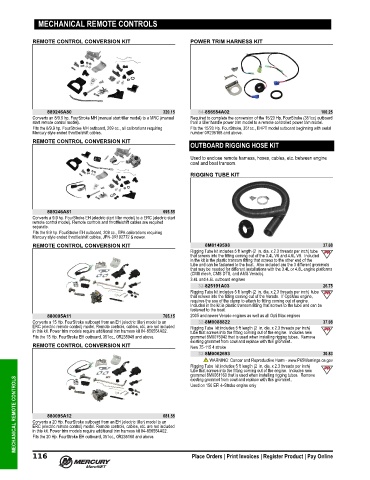

Page 129 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

MECHANICAL REMOTE CONTROLS

REMOTE CONTROL CONVERSION KIT POWER TRIM HARNESS KIT

889246A80 320.15 84-856554A02 100.25
Converts an 8/9.9 hp. FourStroke MH (manual start tiller model) to a MRC (manual Required to complete the conversion of the 15/20 Hp. FourStroke (351cc) outboard
start remote control model). from a tiller handle power trim model to a remote controlled power trim model.
Fits the 8/9.9 hp. FourStroke MH outboard, 209 cc., all calibrations requiring Fits the 15/20 Hp. FourStroke, 351cc., EHPT model outboard beginning with serial
Mercury style ended throttle/shift cables. number 0R235168 and above.
REMOTE CONTROL CONVERSION KIT
OUTBOARD RIGGING HOSE KIT

Used to enclose remote harness, hoses, cables, etc. between engine
cowl and boat transom.
RIGGING TUBE KIT

889246A81 695.55
Converts a 9.9 hp. FourStroke EH (electric start tiller model) to a ERC (electric start
remote control model). Remote controls and throttle/shift cables are required
separate.
Fits the 9.9 hp. FourStroke EH outboard, 209 cc., EPA calibrations requiring
Mercury style ended throttle/shift cables, JPN‑0R192772 & newer.
REMOTE CONTROL CONVERSION KIT 8M0149598 37.08
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube
that screws into the fitting coming out of the 3.4L V6 and 4.6L V8. Included
in the kit is the plastic transom fitting that screws to the other end of the
tube and can be fastened to the boat. Also included are the 3 different grommets
that may be needed for different installations with the 3.4L or 4.6L engine platforms
(CMS mech, CMS DTS, and AMS Verado).
3.4L and 4.6L outboard engines
32-825191A03 26.75
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube
that screws into the fitting coming out of the Verado. If OptiMax engine,
requires the use of the clamp to attach to fitting coming out of engine.
Included in the kit is plastic transom fitting that screws to the tube and can be
fastened to the boat.
880095A11 705.15 2005 and newer Verado engines as well as all Opti Max engines
Converts a 15 Hp. FourStroke outboard from an EH (electric tiller) model to an 32-8M0088822 37.08
ERC (electric remote control) model. Remote controls, cables, etc. are not included Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch)
in this kit. Power trim models require additional trim harness kit 84‑856554A02. tube that screws into the fitting coming out of the engine. Includes new
Fits the 15 Hp. FourStroke EH outboard, 351cc., 0R235949 and above. grommet 8M0075942 that is used when installing rigging tubes. Remove
existing grommet from cowl and replace with this grommet..
REMOTE CONTROL CONVERSION KIT New 75‑115 4 stroke
32-8M0062693 30.83
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch)
tube that screws into the fitting coming out of the engine. Includes new
grommet 8M0061160 that is used when installing rigging tubes. Remove
MECHANICAL REMOTE CONTROLS Converts a 20 Hp. FourStroke outboard from an EH (electric tiller) model to an
existing grommet from cowl and replace with this grommet..
Used on 150 EFI 4‑Stroke engine only

880095A12
681.55
ERC (electric remote control) model. Remote controls, cables, etc. are not included
in this kit. Power trim models require additional trim harness kit 84‑856554A02.
Fits the 20 Hp. FourStroke EH outboard, 351cc., 0R235168 and above.
