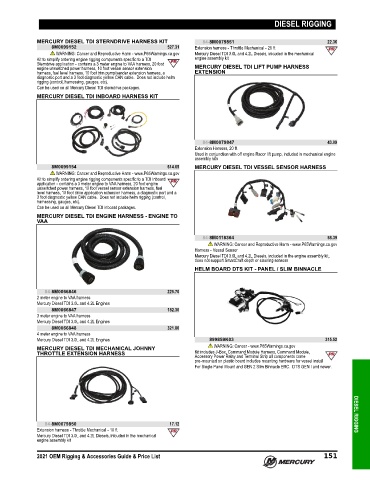

Page 164 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DIESEL RIGGING

MERCURY DIESEL TDI STERNDRIVE HARNESS KIT 84-8M0079851 22.36
8M0099152 527.31 Extension harness ‑ Throttle Mechanical ‑ 20 ft
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical
Kit to simplify ordering engine rigging components specific to a TDI engine assembly kit
Sterndrive application ‑ contains a 3 meter engine to VAA harness, 20 foot
engine unswitched power harness, 10 foot vessel sensor extension MERCURY DIESEL TDI LIFT PUMP HARNESS
harness, fuel level harness, 10 foot trim pump/sender extension harness, a EXTENSION
diagnostic port and a 3 foot diagnostic yellow CAN cable. Does not include helm
rigging (control, harnessing, gauges, etc).
Can be used on all Mercury Diesel TDI sterndrive packages.
MERCURY DIESEL TDI INBOARD HARNESS KIT

84-8M0079847 43.09
Extension Harness, 20 ft.
Used in conjunction with off engine Racor lift pump, included in mechanical engine
assembly kits
8M0099154 614.65 MERCURY DIESEL TDI VESSEL SENSOR HARNESS
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Kit to simplify ordering engine rigging components specific to a TDI Inboard
application ‑ contains a 3 meter engine to VAA harness, 20 foot engine
unswitched power harness, 10 foot vessel sensor extension harness, fuel
level harness, 10 foot drive application extension harness, a diagnostic port and a
3 foot diagnostic yellow CAN cable. Does not include helm rigging (control,
harnessing, gauges, etc).
Can be used on all Mercury Diesel TDI inboard packages.
MERCURY DIESEL TDI ENGINE HARNESS - ENGINE TO
VAA

84-8M0118364 58.39
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Harness ‑ Vessel Sensor
Mercury Diesel TDI 3.0L and 4.2L Diesels, included in the engine assembly kit,
does not support SmartCraft depth or steering sensors
HELM BOARD DTS KIT - PANEL / SLIM BINNACLE

84-8M0066846 225.70
2 meter engine to VAA harness
Mercury Diesel TDI 3.0L and 4.2L Engines
8M0066847 182.30
3 meter engine to VAA harness
Mercury Diesel TDI 3.0L and 4.2L Engines
8M0066848 321.80
4 meter engine to VAA harness
Mercury Diesel TDI 3.0L and 4.2L Engines 899859K03 315.52
MERCURY DIESEL TDI MECHANICAL JOHNNY WARNING: Cancer - www.P65Warnings.ca.gov
THROTTLE EXTENSION HARNESS Kit includes J‑Box, Command Module Harness, Command Module,
Accessory Power Relay and Terminal Strip all components come
pre‑mounted on plastic board includes mounting hardware for vessel install
For Single Panel Mount and GEN 2 Slim Binnacle ERC. DTS GEN I and newer.

84-8M0079850 17.12 DIESEL RIGGING
Extension harness ‑ Throttle Mechanical ‑ 10 ft
Mercury Diesel TDI 3.0L and 4.2L Diesels, inlcuded in the mechanical
engine assembly kit

2021 OEM Rigging & Accessories Guide & Price List 151
