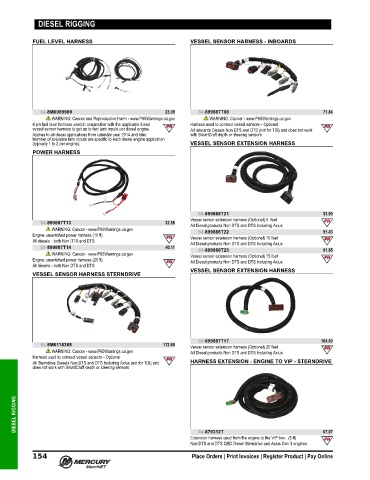

Page 167 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DIESEL RIGGING

FUEL LEVEL HARNESS VESSEL SENSOR HARNESS - INBOARDS

84-8M0089989 23.09 84-899887T08 71.84
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
4 pin fuel level harness used in conjunction with the applicable diesel Harness used to connect vessel sensors ‑ Optional
vessel sensor harness to get up to two tank inputs per diesel engine. All Inboards Diesels Non DTS and DTS (not for TDI) and does not work
Applies to all diesel applications from calendar year 2014 and later. with SmartCraft depth or steering sensors
Number of available tank inputs are specific to each diesel engine application
(typically 1 to 2 per engine). VESSEL SENSOR EXTENSION HARNESS
POWER HARNESS

84-899888T21 53.90
Vessel sensor extension harness (Optional) 5 feet
84-899887T13 32.59 All Diesel products Non DTS and DTS including Axius
WARNING: Cancer - www.P65Warnings.ca.gov 84-899888T22 91.43
Engine unswitched power harness (10 ft) Vessel sensor extension harness (Optional) 10 feet
All diesels ‑ both Non DTS and DTS All Diesel products Non DTS and DTS including Axius
84-899887T14 40.11 84-899888T23 91.85
WARNING: Cancer - www.P65Warnings.ca.gov Vessel sensor extension harness (Optional) 15 feet
Engine unswitched power harness (20 ft) All Diesel products Non DTS and DTS including Axius
All diesels ‑ both Non DTS and DTS
VESSEL SENSOR EXTENSION HARNESS
VESSEL SENSOR HARNESS STERNDRIVE

84-899887T17 164.60
84-8M0118368 172.60 Vessel sensor extension harness (Optional) 20 feet
WARNING: Cancer - www.P65Warnings.ca.gov All Diesel products Non DTS and DTS including Axius
Harness used to connect vessel sensors ‑ Optional
All Sterndrive Diesels Non DTS and DTS Including Axius (not for TDI) and HARNESS EXTENSION - ENGINE TO VIP - STERNDRIVE
does not work with SmartCraft depth or steering sensors

DIESEL RIGGING

84-879312T
Extension harness used from the engine to the VIP box. (5 ft) 67.07
Non DTS and DTS QSD Diesel Sterndrive and Axius Gen II engines
