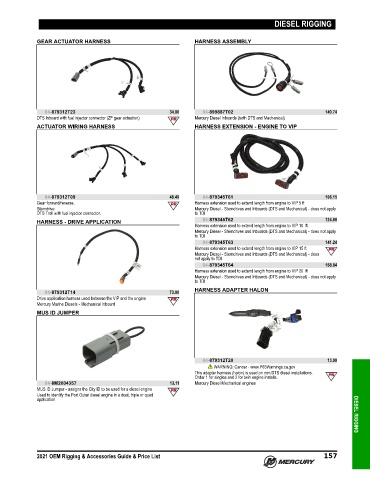

Page 170 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

DIESEL RIGGING

GEAR ACTUATOR HARNESS HARNESS ASSEMBLY

84-879312T23 34.80 84-899887T02 140.74
DTS Inboard with fuel injector connector (ZF gear actuation) Mercury Diesel Inboards (both DTS and Mechanical)
ACTUATOR WIRING HARNESS HARNESS EXTENSION - ENGINE TO VIP

84-879312T09 48.49 84-879345T61 106.15
Gear forward/reverse. Harness extension used to extend length from engine to VIP 5 ft
Sterndrive Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
DTS Troll with fuel injector connector. to TDI
HARNESS - DRIVE APPLICATION 84-879345T62 124.60
Harness extension used to extend length from engine to VIP 10 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
84-879345T63 141.24
Harness extension used to extend length from engine to VIP 15 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does
not apply to TDI
84-879345T64 168.84
Harness extension used to extend length from engine to VIP 20 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
HARNESS ADAPTER HALON
84-879312T14 73.00
Drive application harness used between the VIP and the engine
Mercury Marine Diesels ‑ Mechanical Inboard
MUS ID JUMPER

84-879312T20 13.90
WARNING: Cancer - www.P65Warnings.ca.gov
This adapter harness (halon) is used on non DTS diesel installations.
Order 1 for singles and 2 for twin engine installs.
84-8M2004357 13.11 Mercury Diesel Mechanical engines
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine
Used to identify the Port Outer diesel engine in a dual, triple or quad
application DIESEL RIGGING
