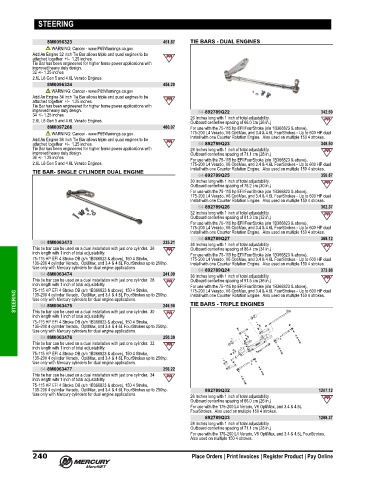

Page 253 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

STEERING

8M0096323 451.87 TIE BARS - DUAL ENGINES
WARNING: Cancer - www.P65Warnings.ca.gov
Add An Engine 32 inch Tie Bar allows triple and quad engines to be
attached together +/‑ 1.25 inches.
Tie Bar has been engineered for higher horse power applications with
improved heavy duty design.
32 +/‑ 1.25 inches
2.6L L6 Gen 5 and 4.6L Verado Engines.
8M0096324 454.20
WARNING: Cancer - www.P65Warnings.ca.gov
Add An Engine 34 inch Tie Bar allows triple and quad engines to be
attached together +/‑ 1.25 inches.
Tie Bar has been engineered for higher horse power applications with
improved heavy duty design. 64-892789Q22 342.69
34 +/‑ 1.25 inches 26 Inches long with 1 inch of total adjustability.
2.6L L6 Gen 5 and 4.6L Verado Engines. Outboard centerline spacing of 66.0 cm (26 in.)
8M0097268 480.07 For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above),
WARNING: Cancer - www.P65Warnings.ca.gov 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual
Add An Engine 36 inch Tie Bar allows triple and quad engines to be Install with one Counter Rotation Engine. Also used on multiple 150 4 strokes.
attached together +/‑ 1.25 inches. 64-892789Q23 348.50
Tie Bar has been engineered for higher horse power applications with 28 Inches long with 1 inch of total adjustability.
improved heavy duty design. Outboard centerline spacing of 71.1 cm (28 in.)
36 +/‑ 1.25 inches For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above),
2.6L L6 Gen 5 and 4.6L Verado Engines. 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual
Install with one Counter Rotation Engine. Also used on multiple 150 4 strokes.
TIE BAR- SINGLE CYLINDER DUAL ENGINE
64-892789Q25 350.87
30 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 76.2 cm (30 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above),
175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual
Install with one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q26 362.37
32 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 81.3 cm (32 in.)
For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above),
175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual
Install with one Counter Rotation Engine. Also used on multiple 150 4 strokes.
64-892789Q27 368.12
64-8M0063473 235.21 34 Inches long with 1 inch of total adjustability.
This tie bar can be used on a dual installation with just one cylinder. 26 Outboard centerline spacing of 86.4 cm (34 in.)
inch length with 1 inch of total adjustability. For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above),
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke, 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual
135‑200 4 cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Install with one Counter Rotation Engine. Also used on multiple 150 4 strokes.
Use only with Mercury cylinders for dual engine applications 64-892789Q24 373.88
64-8M0063474 241.09 36 Inches long with 1 inch of total adjustability.
This tie bar can be used on a dual installation with just one cylinder. 28 Outboard centerline spacing of 91.5 cm (36 in.)
inch length with 1 inch of total adjustability. For use with the 75‑115 hp EFI FourStroke (s/n 1B366823 & above),
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke,
175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes ‑ Up to 600 HP dual
STEERING 135‑200 4 cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. Install with one Counter Rotation Engine. Also used on multiple 150 4 strokes.
Use only with Mercury cylinders for dual engine applications.
TIE BARS - TRIPLE ENGINES
246.98
64-8M0063475
This tie bar can be used on a dual installation with just one cylinder. 30
inch length with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke,
135‑200 4 cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp.
Use only with Mercury cylinders for dual engine applications.
64-8M0063476 250.39
This tie bar can be used on a dual installation with just one cylinder. 32
inch length with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke,
135‑200 4 cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp.
Use only with Mercury cylinders for dual engine applications.
64-8M0063477 256.22
This tie bar can be used on a dual installation with just one cylinder. 34
inch length with 1 inch of total adjustability.
75‑115 HP EFI 4 Stroke OB (s/n 1B366823 & above), 150 4 Stroke,
135‑200 4 cylinder Verado, OptiMax, and 3.4 & 4.6L FourStrokes up to 250hp. 892789Q32 1207.12
Use only with Mercury cylinders for dual engine applications. 26 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 66.0 cm (26 in.)
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L
FourStrokes. Also used on multiple 150 4 strokes.
892789Q33 1288.37
28 Inches long with 1 inch of total adjustability.
Outboard centerline spacing of 71.1 cm (28 in.)
For use with the 175‑200 L4 Verado, V6 OptiMax, and 3.4 & 4.6L FourStrokes.
Also used on multiple 150 4 strokes.

240 Place Orders | Print Invoices | Register Product | Pay Online
