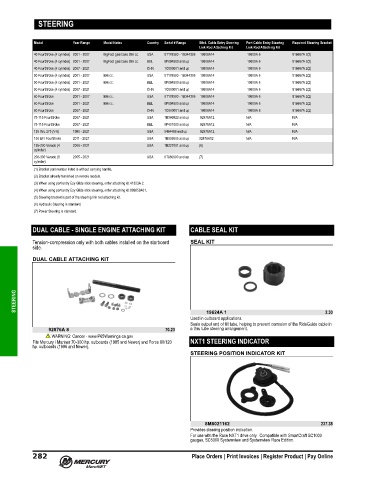

Page 295 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

STEERING

Model Year Range Model Notes Country Serial # Range Stbd. Cable Entry Steering Port Cable Entry Steering Required Steering Bracket
Link Rod Attaching Kit Link Rod Attaching Kit
40 FourStroke (4 cylinder) 2001 - 2007 BigFoot gearcase 996 cc. USA 0T178500 - 1B344306 19608A14 19609A 6 816667A 2(2)
40 FourStroke (4 cylinder) 2001 - 2007 BigFoot gearcase 996 cc. BEL 0P094500 and up 19608A14 19609A 6 816667A 2(2)
40 FourStroke (4 cylinder) 2007 - 2021 CHN 1C000001 and up 19608A14 19609A 6 816667A 2(2)
50 FourStroke (4 cylinder) 2001 - 2007 996 cc. USA 0T178500 - 1B344306 19608A14 19609A 6 816667A 2(2)
50 FourStroke (4 cylinder) 2001 - 2021 996 cc. BEL 0P094500 and up 19608A14 19609A 6 816667A 2(2)
50 FourStroke (4 cylinder) 2007 - 2021 CHN 1C000001 and up 19608A14 19609A 6 816667A 2(2)
60 FourStroke 2001 - 2007 996 cc. USA 0T178500 - 1B344306 19608A14 19609A 6 816667A 2(2)
60 FourStroke 2001 - 2021 996 cc. BEL 0P094500 and up 19608A14 19609A 6 816667A 2(2)
60 FourStroke 2007 - 2021 CHN 1C000001 and up 19608A14 19609A 6 816667A 2(2)
75-115 FourStroke 2007 - 2021 USA 1B366823 and up 92876A12 N/A N/A
75-115 FourStroke 2007 - 2021 BEL 0P401000 and up 92876A12 N/A N/A
135 thru 275 (V-6) 1980 - 2021 USA 5464486 and up 92876A12 N/A N/A
150 EFI FourStroke 2011 - 2021 USA 1B905505 and up 92876A12 N/A N/A
135-200 Verado (4 2006 - 2021 USA 1B227001 and up (6)
cylinder)
200-300 Verado (6 2005 - 2021 USA 0T980000 and up (7)
cylinder)
(1) Bracket part number listed is without carrying handle.
(2) Bracket already furnished on remote models.
(3) When using port entry Ezy Glide stick steering, order attaching kit 41323A 2.
(4) When using port entry Ezy Glide stick steering, order attaching kit 899659A01.
(5) Steering bracket is part of the steering link rod attaching kit.
(6) Hydraulic Steering is standard.
(7) Power Steering is standard.

DUAL CABLE - SINGLE ENGINE ATTACHING KIT CABLE SEAL KIT

Tension‑compression only with both cables installed on the starboard SEAL KIT
side.

DUAL CABLE ATTACHING KIT

STEERING

19624A 1
Used in outboard applications. 2.30
Seals output end of tilt tube, helping to prevent corrosion of the RideGuide cable in
92876A 8 70.23 a thru tube steering arrangement.
WARNING: Cancer - www.P65Warnings.ca.gov
Fits Mercury / Mariner 70‑300 hp. outboards (1985 and Newer) and Force 90/120 NXT1 STEERING INDICATOR
hp. outboards (1996 and Newer).
STEERING POSITION INDICATOR KIT

8M8021162 237.38
Provides steering position indication.
For use with the Race NXT1 drive only. Compatible with SmartCraft SC1000
gauges, SC5000 Systemview and Systemview Race Edition.
