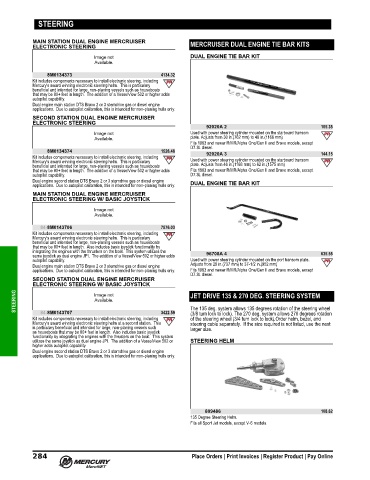

Page 297 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

STEERING

MAIN STATION DUAL ENGINE MERCRUISER MERCRUISER DUAL ENGINE TIE BAR KITS
ELECTRONIC STEERING
DUAL ENGINE TIE BAR KIT

8M0134373 4134.32
Kit includes components necessary to install electronic steering, including
Mercury's award winning electronic steering helm. This is particulary
beneficial and intended for large, non‑planing vessels such as houseboats
that may be 80+ feet in length. The addition of a VesselView 502 or higher adds
autopilot capability.
Dual engine main station DTS Bravo 2 or 3 sterndrive gas or diesel engine
applications. Due to autopilot calibration, this is intended for non‑planing hulls only.
SECOND STATION DUAL ENGINE MERCRUISER
ELECTRONIC STEERING
92020A 2 105.35
Used with power steering cylinder mounted on the starboard transom
plate. Adjusts from 30 in.(762 mm) to 46 in.(1168 mm)
Fits 1983 and newer R/MR/Alpha One/Gen II and Bravo models, except
D7.3L diesel.
8M0134374 1526.48 92020A 3 144.15
Kit includes components necessary to install electronic steering, including
Mercury's award winning electronic steering helm. This is particulary Used with power steering cylinder mounted on the starboard transom
beneficial and intended for large, non‑planing vessels such as houseboats plate. Adjusts from 46 in.(1168 mm) to 62 in.(1575 mm)
that may be 80+ feet in length. The addition of a VesselView 502 or higher adds Fits 1983 and newer R/MR/Alpha One/Gen II and Bravo models, except
autopilot capability. D7.3L diesel.
Dual engine second station DTS Bravo 2 or 3 sterndrive gas or diesel engine DUAL ENGINE TIE BAR KIT
applications. Due to autopilot calibration, this is intended for non‑planing hulls only.
MAIN STATION DUAL ENGINE MERCRUISER
ELECTRONIC STEERING W/ BASIC JOYSTICK

84-8M0143706 7576.03
Kit includes components necessary to install electronic steering, including
Mercury's award winning electronic steering helm. This is particulary
beneficial and intended for large, non‑planing vessels such as houseboats
that may be 80+ feet in length. Also includes basic joystick functionality by
integrating the engines with the thrusters on the boat. This system utilizes the 96708A 4 635.55
same joystick as dual engine JPI. The addition of a VesselView 502 or higher adds
autopilot capability. Used with power steering cylinder mounted on the port transom plate.
Dual engine main station DTS Bravo 2 or 3 sterndrive gas or diesel engine Adjusts from 29 in.(737 mm) to 37‑1/2 in.(952 mm)
applications. Due to autopilot calibration, this is intended for non‑planing hulls only. Fits 1983 and newer R/MR/Alpha One/Gen II and Bravo models, except
D7.3L diesel.
SECOND STATION DUAL ENGINE MERCRUISER
ELECTRONIC STEERING W/ BASIC JOYSTICK
STEERING JET DRIVE 135 & 270 DEG. STEERING SYSTEM

The 135 deg. system allows 135 degrees rotation of the steering wheel
84-8M0143707
Kit includes components necessary to install electronic steering, including 3422.59 (3/8 turn lock to lock). The 270 deg. system allows 270 degrees rotation
of the steering wheel (3/4 turn lock to lock).Order helm, bezel, and
Mercury's award winning electronic steering helm at a second station. This steering cable separately. If the size required is not listed, use the next
is particulary beneficial and intended for large, non‑planing vessels such larger size.
as houseboats that may be 80+ feet in length. Also includes basic joystick
functionality by integrating the engines with the thrusters on the boat. This system
utilizes the same joystick as dual engine JPI. The addition of a VesselView 502 or STEERING HELM
higher adds autopilot capability.
Dual engine second station DTS Bravo 2 or 3 sterndrive gas or diesel engine
applications. Due to autopilot calibration, this is intended for non‑planing hulls only.

809486 108.62
135 Degree Steering Helm.
Fits all Sport Jet models, except V‑6 models.
