INSTALLATION SPECIFICATIONS AND TOOLS
INSTALLATION SPECIFICATIONS AND TOOLS Required mounting clearances:

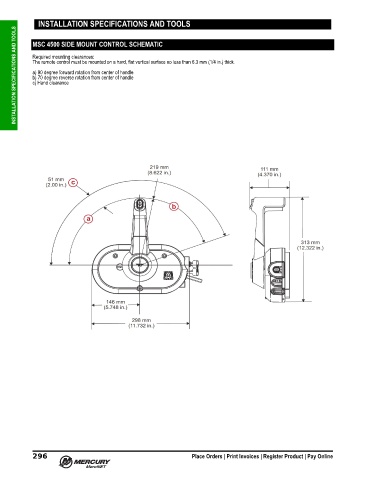

MSC 4500 SIDE MOUNT CONTROL SCHEMATIC
The remote control must be mounted on a hard, flat vertical surface no less than 6.3 mm (1/4 in.) thick.
a) 90 degree forward rotation from center of handle
b) 70 degree reverse rotation from center of handle
c) Hand clearance
