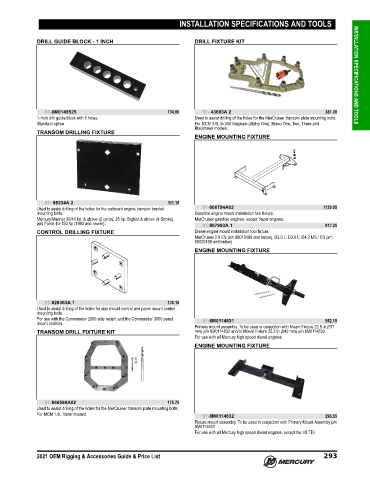

Page 306 - OEM RIGGING AND ACCESSORIES GUIDE (2021) - 8M0174477

INSTALLATION SPECIFICATIONS AND TOOLS

DRILL GUIDE BLOCK - 1 INCH DRILL FIXTURE KIT INSTALLATION SPECIFICATIONS AND TOOLS

91-8M0149525 134.00 91- 43693A 2 381.00
1‑Inch drill guide block with 5 holes. Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts.
Standard option For MCM 3.0L to 350 Magnum (Alpha One), Bravo One, Two, Three and
Blackhawk models.
TRANSOM DRILLING FIXTURE
ENGINE MOUNTING FIXTURE

91- 98234A 2 111.15
Used to assist drilling of the holes for the outboard engine transom bracket 91-806794A02 1129.95
mounting bolts. Gasoline engine mount installation tool fixture.
Mercury/Mariner 30/40 hp. & above (2 cycle), 25 hp. Bigfoot & above (4‑Stroke), MerCruiser gasoline engines, except Vazer engines.
and Force 40‑150 hp (1993 and newer).
91-807903A 1 917.25
CONTROL DRILLING FIXTURE Diesel engine mount installation tool fixture.
MerCruiser 2.8 ES (s/n 88010499 and below), D3.0 L, D3.6 L; D4.2 MS / ES (s/n
88020199 and below)
ENGINE MOUNTING FIXTURE

91-828363A 1 135.10
Used to assist drilling of the holes for side mount control and panel mount control
mounting bolts.
For use with the Commander 2000 side mount and the Commander 3000 panel 91-8M0114831 952.15
mount controls.
Primary mount assembly. To be used in conjuction with Mount Fixture 22.5 in.(571
TRANSOM DRILL FIXTURE KIT mm) p/n 8M0114832 and/or Mount Fixture 25.2 in.(640 mm) p/n 8M0114833
For use with all Mercury high speed diesel engines
ENGINE MOUNTING FIXTURE

91-866590A02 175.75
Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts.
For MCM 1.6L Vazer models. 91-8M0114832 298.55
Fixture mount assembly. To be used in conjuction with Primary Mount Assemby p/n
8M0114831
For use with all Mercury high speed diesel engines, except the V8 TDI

2021 OEM Rigging & Accessories Guide & Price List 293
